    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Motor

    【Features】:Grain Seeds Cleaning Winnowing Sorting Screening Machine Model UGFX-1 can remove big, small, heavy and light impurities from the seeds efficiently.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    Grain Seeds Cleaning Winnowing Sorting Screening Machine Model UGFX-1 is our newly developed grain seeds cleaning machine, which can remove big, small, heavy and light impurities from the seeds, such as maize, soybean, lentil, lupin beans, mung beans, kidney beans, chickpeas, sorghum, rice, millet, quinoa, chia, fonio, herbs plants seeds, vanilla seeds, hemp seeds, etc. It is widely used in grain processing and agricultural production. This model has been exported to Gambia, Sierra Leone, Togo, Mozambique, Liberia, etc.

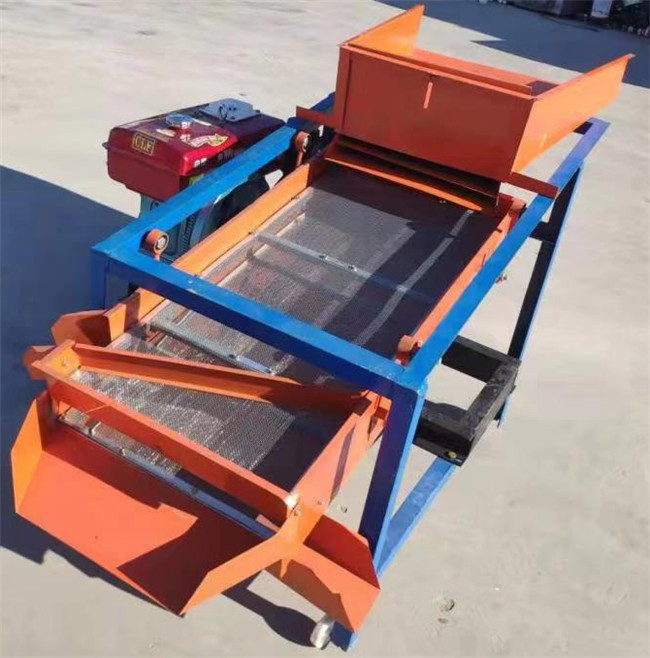

    Grain Seeds Cleaning Winnowing Sorting Screening Machine Structure:
    The Grain Seeds Cleaning Winnowing Sorting Screening Machine has two layers with different sizes of sieve holes, and one vibrating sieve. The upper sieve is used to select impurities larger than the material, and the lower layer is to select impurities smaller than the material. The upper and lower sieve holes should be similar to the size of the material and not exceed 0.2 cm.

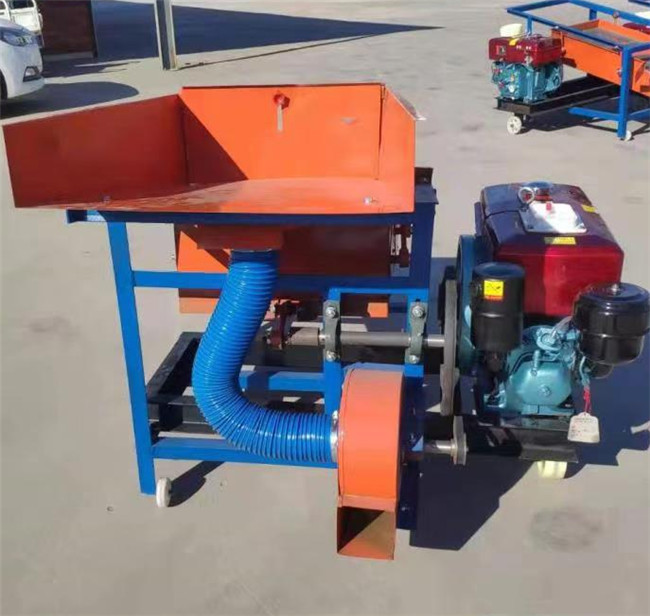

    In addition, there is a fan for cleaning at the feed inlet of the machine.


    Cleaning principle: When the material slides through the feed opening, the feeding speed is effectively controlled, and the skin, bran and other impurities that are lighter than the material are strongly sucked away by the fan in the lower layer of the feed hopper! The fan outlet can be equipped with a cloth ventilation pocket with the same caliber to prevent dust pollution!


    Machine maintenance:
    Please check the lubrication and clean each moving part (such as bearings) every 4-10 hours of working hours.
    When moving the machine before using it, choose a relatively flat site.

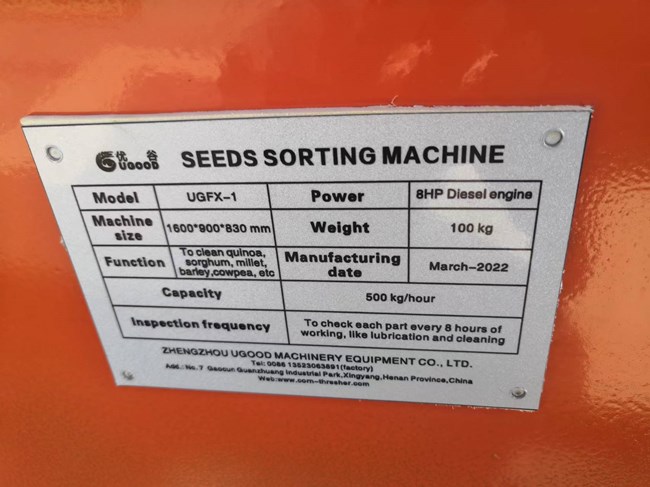

    Technical Parameter:
    Model: UGFX-1
    Size: 1.60*0.90*0.83m
    Weight: 100kg
    Capacity: 500-800kg/hour
    Power: electric motor or 8hp diesel engine

    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Electric Motor


    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Electric Motor

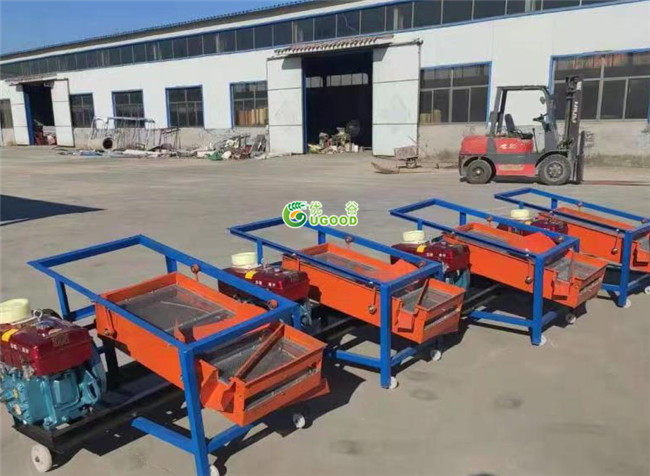

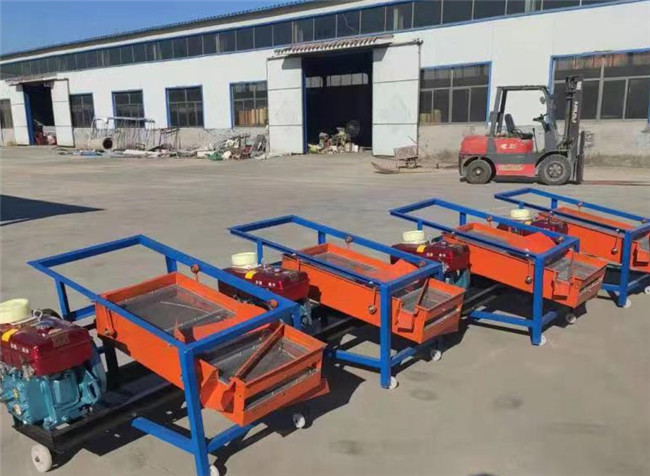

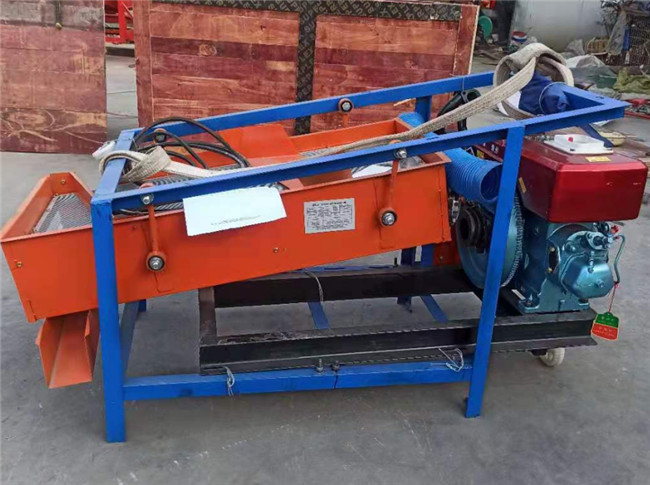

    This model has been exported to Gambia, Sierra Leone, Togo, Mozambique, Liberia, etc.. These are some delivery pictures for reference:

    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Electric Motor

    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Motor

    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Electric Motor


    Grain Seeds Cleaning Winnowing Sorting Screening Machine 3-Layer Powered by Diesel Engine or Electric Motor


    Grain Seeds Cleaning Winnowing Sorting Screening Machine Operation Video:



    Video about cargo delivery to Liberia, Togo, etc.:

    Features:

    1.Strong function: Grain Seeds Cleaning Winnowing Sorting Screening Machine Model UGFX-1 is our newly developed grain seeds cleaning machine, which can remove big, small, heavy and light impurities from the seeds.
    2. Wide application: It is widely used in grain processing and agricultural production and can process almost each kind of grain seeds, such as maize, soybean, lentil, lupin beans, mung beans, kidney beans, chickpeas, sorghum, rice, millet, quinoa, chia, fonio, herbs plants seeds, vanilla seeds, hemp seeds, etc.
    3. Popular and it has received good reputation by farmers and agricultural research institute. This model has been exported to Gambia, Sierra Leone, Togo, Mozambique, Liberia, etc.

    Technical Parameters:

    Technical Parameter:
    Model: UGFX-1
    Size: 1.60*0.90*0.83m
    Weight: 100kg
    Capacity: 500-800kg/hour
    Power: electric motor or 8hp diesel engine

    Any change of technical parameters, there is no further notice.
