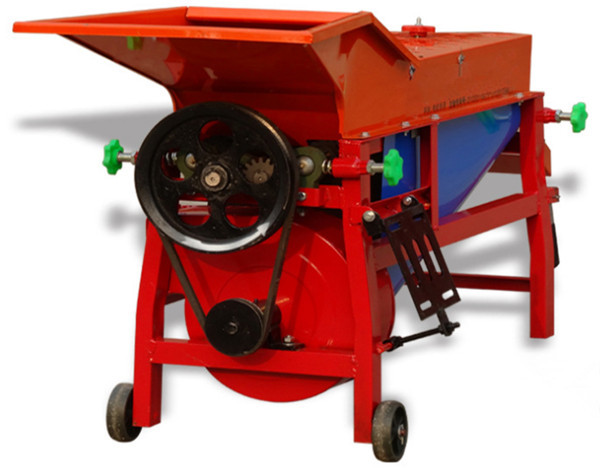

UGH-01 Blowing Type Corn Husking Machine can peel off dry corn husk efficiently with strong air blowing function. Made up of thicker steel material for the corn husker body. The middle two rollers: Hollow steel shaft. Outer rollers: Car tire material. More durable!

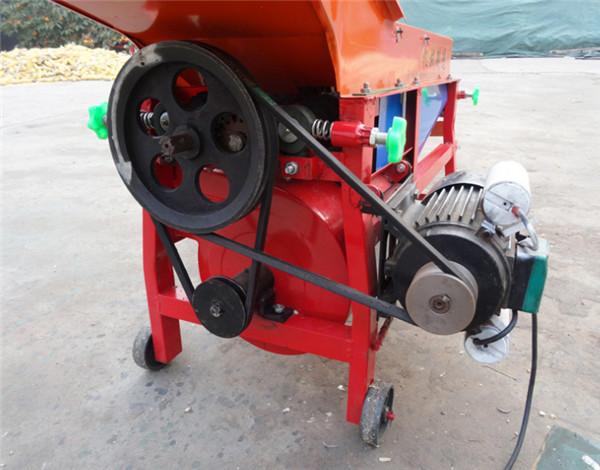

It can be powered by electric motor or diesel engine. Please provide your local voltage, hertz, single-phase or three-phase so that we can customize the right motor.
Features:
1. High husking efficiency, which can reach 2T/Hour;
2. Less grain loss;
3. Very easy to disassemble and adjust;

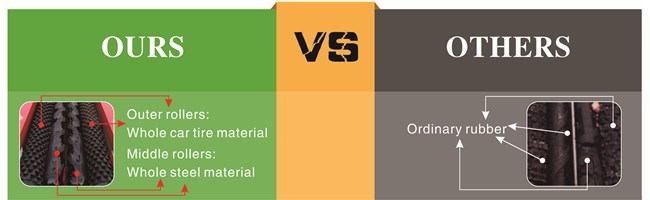

4. Made up of thicker steel material for the machine body. The middle two rollers: Hollow steel shaft. Length*diameter: 1m*60cm. Rollers on both sides: Car tire material. Length*diameter: 1m*70cm. More durable, long service life;;
5. Machine body paint process;
6. Strong fan, blowing husk far away;
7. More suitable for dry corn;
8. Factory direct sales, no intermediaries earn the difference!
After-Sales Service:
1. Technical Consultation:
If you have problems when using our machine, please read the instructions first.
If you can’t solve the problem, then don’t hesitate to contact us. Our engineer will provide customized technical support for you from each time!
2. Maintenance:
1)We would supply you with the maintenance guide from each time.
2)All accessories are guaranteed to be ready in your place within 72 hours.
3)All accessories required by customers should be unconditionally satisfied!
4)Please keep in mind that you should also do the related necessary work according to the instructions before and after each time of operation. Considerate maintenance brings you the longer service life of your machine.
3. One-Year Quality Guarantee:
The machine has one-year quality guarantee. During the guarantee period, if any part of the machine is defective due to the quality problem, we should replace the part for free by express in 3 working days.
VIDEO:
1. High husking efficiency, which can reach 2T/Hour;
2. Less grain loss;
3. Very easy to disassemble and adjust;
4. Made up of thicker steel material for the machine body. The middle two rollers: Hollow steel shaft. Length*diameter: 1m*60cm. Rollers on both sides: Car tire material. Length*diameter: 1m*70cm. More durable, long service life;
5. Machine body paint process;
6. Strong fan, blowing husk far away;
7. More suitable for dry corn;
8. Factory direct sales, no intermediaries earn the difference!
Husker Specification |
Performance Parameter |
Accessory Configuration |
|||
Name |
Blowing Type Corn Husker |
Capacity |
≥2T/Hour |
Motor Power |
2.2kw |
Dimension |
1460*490*790mm |
Husking Rate |
≥98% |
Voltage |
220v, 110V, etc. (can be customized) |
Weight |
60kg |
Motor Working Temperature |
<70℃ |
Motor Rotating Speed |
2800turns/minute |
Packing Size |
1460*490*790mm |
Husker Rotating Speed |
700turns/minute |
Transmission Belt |
B1100 |
We have also developed the new model UGH-03 Fresh Sweet Corn Husker specifically for sweet corn husking with unique structure. Please check the details: Small Specific Fresh Green Sweet Corn Husker
Any change of technical parameters, there is no further notice.
