    UGT-07 Corn Husking and Threshing Machine Driven by Tractor 24HP

    【Features】:UGT-07 UGT-07 Corn Husking and Threshing Machine Driven by Tractor 24HP or Integrated Maize Shelling and Threshing Machine with capacity 15T/Hour

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    UGT-07 UGT-07 Corn Husking and Threshing Machine Driven by Tractor 24HP or Integrated Maize Shelling and Threshing Machine with capacity 15T/Hour:
    1. The threshing part of the machine adopts auger-type drum threshing, with high output, clean threshing, no broken corn cob, and easier pulling of the thresher.
    2. The machine uses a centrifugal fan, which can effectively suck the impurities in the corn and send it into the bag. The working process is clean and hygienic.
    3. The screening mechanism of this machine adopts double-layer vibrating screen, which makes the screened grains cleaner, and the outlet screen also screens the grains in the corn cob.
    4. Belt conveying is used to send the threshed corn kernels into cloth bags to reduce the damage rate. Time-saving and convenient.
    5. The machine also performs a screening process on the corn cob to make the corn cob free of impurities.
    6. Equipped with automatic feeding function, which greatly saves labor and improves the work efficiency.
    7. The machine has: less manpower, less labor, high work efficiency, double suction dust, double drum, double chain, double angle belt, vibrating screen, screw auger bagging, faster and cleaner than ordinary thresher, suitable for different venues.
    8. Threshing rate: more than 98%, damage rate: less than 1%.

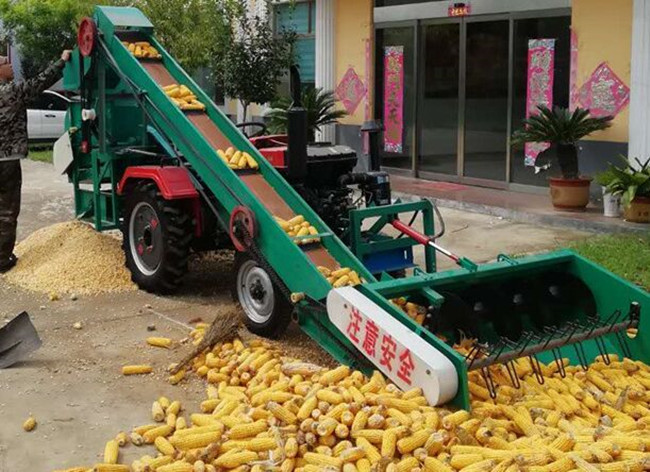

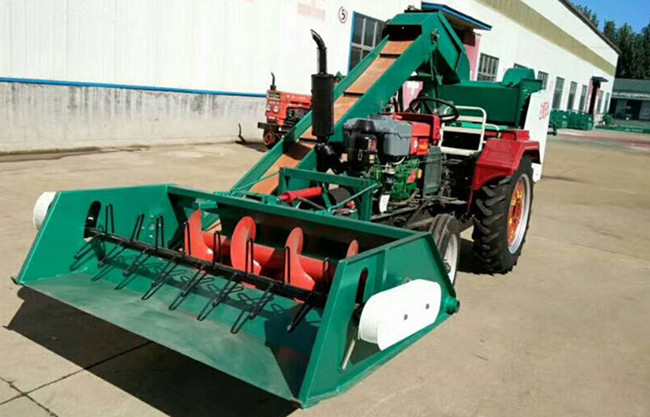

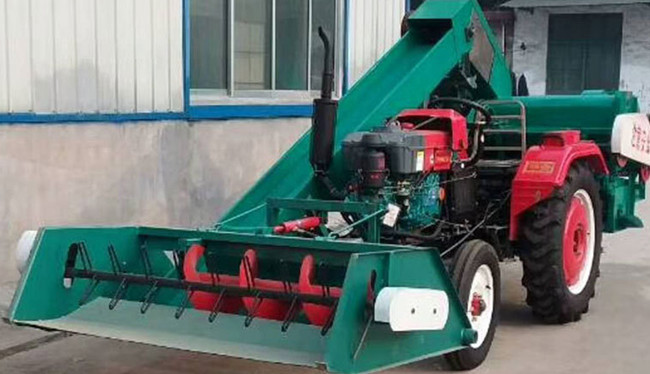

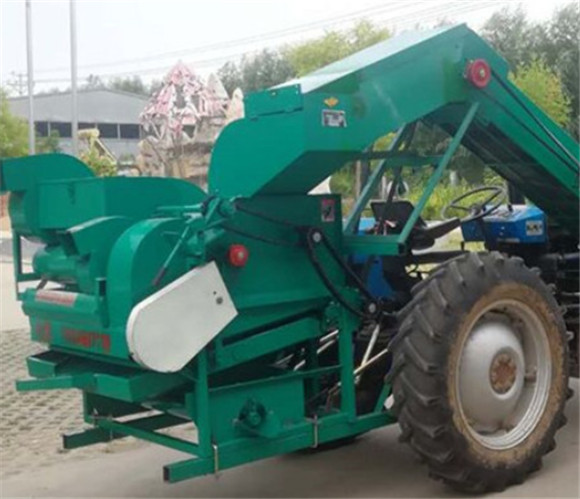

    UGT-07 Fully Automatic Corn Threshing Machine Integrated Maize Dehusking Shelling Machine



    UGT-07 Fully Automatic Corn Threshing Machine Integrated Maize Dehusking Shelling Machine

    UGT-07 Fully Automatic Corn Threshing Machine Integrated Maize Dehusking Shelling Machine

    UGT-07 Fully Automatic Corn Threshing Machine or Integrated Maize Dehusking and Shelling Machine Videos:





    UGT-07 Fully Automatic Corn Threshing Machine or Integrated Maize Dehusking and Shelling Machine Technical Parameter:



    Diesel Engine

    Capacity

    Matched Power

    Size

    Weight

    Single-Cylinder (can only thresh)

    10T

    18KW above

    5500*1700*1900mm

    600kg

    Multi-Cylinder (can both husk and thresh)

    15T

    20KW above

    5500*1700*1900mm

    600kg




    Please note:
    1)Please tell us the HPs, single cylinder or multi-cylinder for your tractor;
    2)Do you need only threshing function or both husking and threshing? Our this model can meet your different requirements.

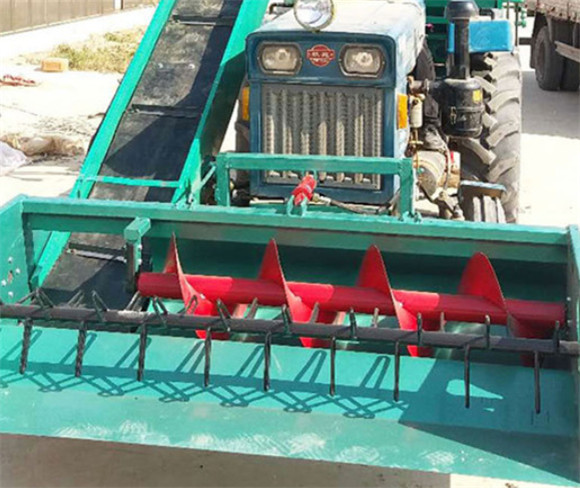

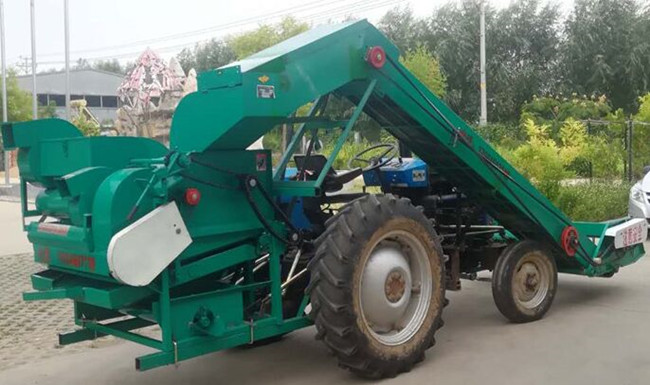

    Automatic Corn Threshing Machine


    Automatic Corn Threshing Machine



    Fully Automatic Corn Threshing Machine Operation Attentions:
    During the operation of large-scale automatic feeding corn thresher, the speed of the vehicle should not be too fast or too slow. Otherwise, the feed port will be blocked. The feeding should be uniform. If the feeding is not uniform, it may cause the corn cob to break, the low output or blockage.

    Fully Automatic Corn Threshing Machine Troubleshooting:
    1. The front hopper is too close to the ground, causing the large angle iron to scrape.
    2, the belt is too loose, adjust the rafter to reinstall the belt.
    3, the clutch is too loose, the clutch U-shaped card can be loosened a few times.
    4, the chain: the two sprocket does not collide, the chain is too loose.
    5, the big belt deviation: adjust the front side of the hopper under the two sides of the screw, the upper belt deviation, adjust the left side of the trough.
    6. The thresher does not turn: the clutch is too loose, adjust the clutch lever to make the clutch tight.



    After-Sales Service:

    1. Technical Consultation:
    If you have problems when using our machine, please read the instructions first.
    If you can’t solve the problem, then don’t hesitate to contact us. Our engineer will provide customized technical support for you from each time!
    2. Maintenance:
    1)We would supply you with the maintenance guide from each time.
    2)All accessories are guaranteed to be ready in your place within 72 hours.
    3)All accessories required by customers should be unconditionally satisfied!
    4)Please keep in mind that you should also do the related necessary work according to the instructions before and after each time of operation. Considerate maintenance brings you the longer service life of your machine.
    3. One-Year Quality Guarantee:
    The machine has one-year quality guarantee. During the guarantee period, if the main body is defective as the bad quality without any workers’ wrong operation, we should replace the parts for free.

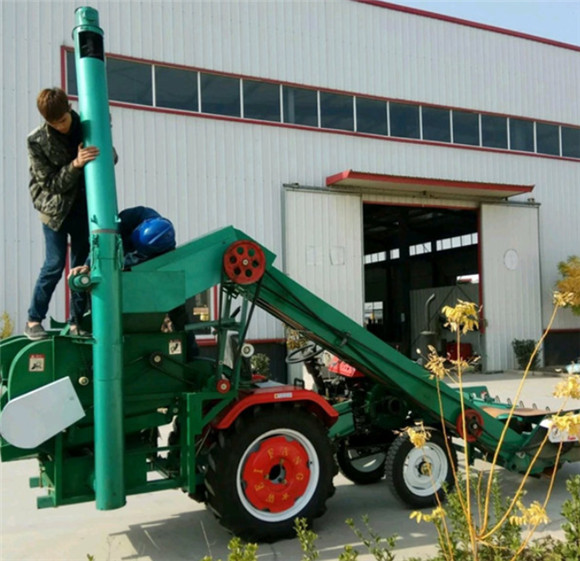

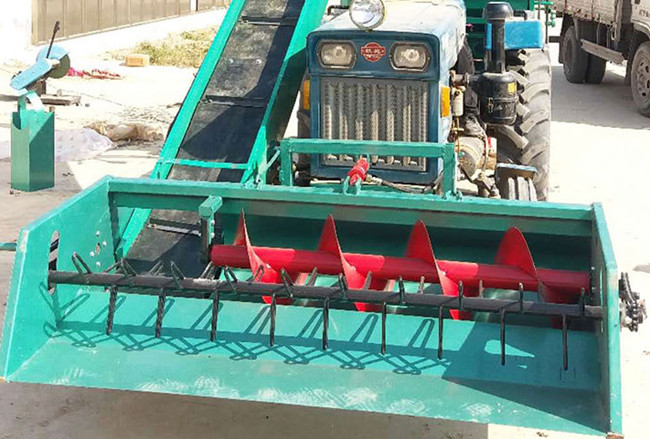

    Fully Automatic Corn Threshing Machine

    Features:

    1. The threshing part of the machine adopts auger-type drum threshing, with high output, clean threshing, no broken corn cob, and easier pulling of the thresher.
    2. The machine uses a centrifugal fan, which can effectively suck the impurities in the corn and send it into the bag. The working process is clean and hygienic.
    3. The screening mechanism of this machine adopts double-layer vibrating screen, which makes the screened grains cleaner, and the outlet screen also screens the grains in the corn cob.
    4. Belt conveying is used to send the threshed corn kernels into cloth bags to reduce the damage rate. Time-saving and convenient.
    5. The machine also performs a screening process on the corn cob to make the corn cob free of impurities.
    6. Equipped with automatic feeding function, which greatly saves labor and improves the work efficiency.
    7. The machine has: less manpower, less labor, high work efficiency, double suction dust, double drum, double chain, double angle belt, vibrating screen, screw auger bagging, faster and cleaner than ordinary thresher, suitable for different venues.
    8. Threshing rate: more than 98%, damage rate: less than 1%.

    Technical Parameters:

    Fully Automatic Corn Threshing Machine Technical parameter:

    Diesel Engine

    Capacity

    Matched Power

    Size

    Weight

    Single-Cylinder

    10T

    18KW above

    5500*1700*1900mm

    600kg

    Multi-Cylinder

    15T

    20KW above

    5500*1700*1900mm

    600kg



    Please note:
    1)Please tell us how many HPs you require;
    2)Do you need only threshing or both husking and threshing? Our this model automatic feeding corn thresher has different types, which can meet your different requirements.

    Any change of technical parameters, there is no further notice.
