    Rice Paddy Nursery Sowing Machine Semi Automatic Seeding Machine

    【Features】:Rice Paddy Nursery Sowing Machine Semi Automatic Seeding Machine

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

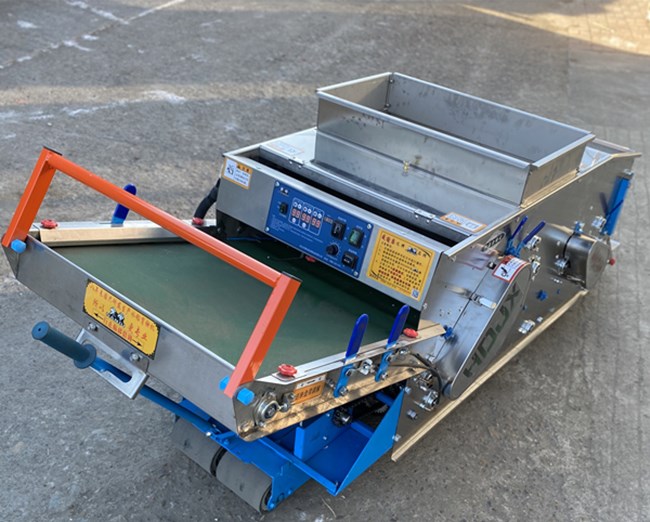

    Rice or Paddy Nursery Sowing Machine Introduction:
    This machine can complete seedling tray transportation, paving, seeding, soil covering, leveling, and water spraying operations at the same time. It is equipped with 5 power 36V DC motors, which can meet the requirements of different quantities and different speeds of this machine.
    The main plate of this machine is all made of high-quality 201 stainless steel plate, which has the advantages of corrosion resistance, bending resistance, high strength, and never rust. The chassis part adopts galvanized steel sheet exterior spray paint treatment method, which makes the appearance of the whole machine smoother and stronger.

    This machine uses 5 units of 36V DC motors as power, of which the walking + reeling belt motor drives the power output shaft through a chain, and at the same time, the walking drive shaft and the reeling belt drive shaft give the machine's walking and reeling belt power. Subsoil + The fertilizer sowing motor gives the power of the subsoil belt power shaft and the fertilizer roller shaft through the chain drive, and the soil covering + seeding motor gives the power of the soil covering belt power shaft, the seeding roller and the seed cleaning roller through the chain transmission, and the three motors finally pass Use the switch on the computer control panel to the desired value.

    The lifting motor drives the lifting screw in the side-shift bridge through the chain drive, and the side shift motor drives the power shaft in the side-shift bridge through the chain drive, and finally through the switch on the computer control panel to achieve the functions of lifting and side-shifting.

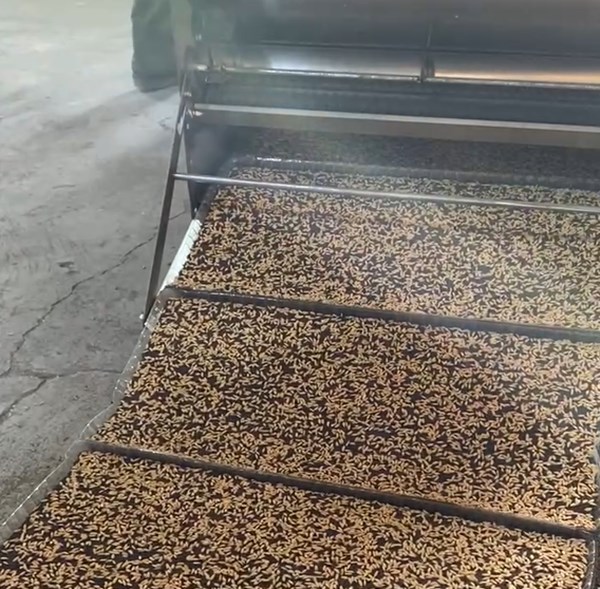

    Rice Paddy Nursery Sowing Machine Semi Automatic Seeding Machine

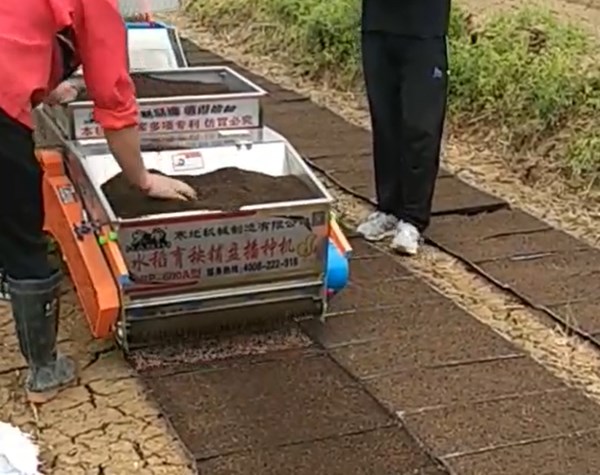

    Rice Paddy Nursery Sowing Machine Semi Automatic Seeding Machine

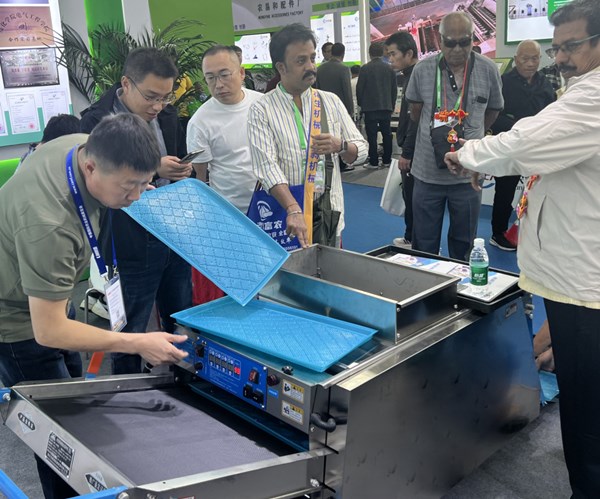

    Rice Paddy Nursery Sowing Machine Semi Automatic Seeding Machine



    Video:

    Features:

    1. This machine adopts front and rear double bridge drive, four crawlers walking, the front axle crawler and the rear axle crawler are not running on the same line, the front axle track is narrow, the rear axle track is wide, the bed surface that the machine passes through is 58cm left and right, and the width is All are compacted and flattened, and when the seedling tray falls from the machine, it will directly fall on the bed surface.
    2. The front and rear double bridges increase the stability of the machine when working, and the four tracks also increase the contact area of the machine to the seedbed, reducing the depth of indentation on the surface of the seedbed due to the weight of the machine.
    3. This machine is designed with electric lifting and side shifting function and 180-degree U-turn function.
    4. When the machine is working, if the direction is shifted from the previous line, the machine is designed with a fine-tuning steering system, which greatly reduces the cumbersome and inaccurate phenomenon of manual dragging in the past.
    5. The machine can move forward and backward when it is not working (when retreating, the feeder belt must be cut off and the lower pallet of the seedling tray can be lifted before it can retreat), and it can work like the assembly line in a static state. (cut off the travel clutch and connect the disc feeding clutch).
    6. This machine can complete seedling tray transportation, paving, seeding, soil covering, leveling, and water spraying operations at the same time. It is equipped with 5 power 36V DC motors, which can meet the requirements of different quantities and different speeds of this machine.
    7. The main plate of this machine is all made of high-quality 201 stainless steel plate, which has the advantages of corrosion resistance, bending resistance, high strength, and never rust. The chassis part adopts galvanized steel sheet exterior spray paint treatment method, which makes the appearance of the whole machine smoother and stronger.



    Technical Parameters:

    Item

    Unit

    Specification

    Product

    /

    UGSYM-6 Rice seedling spreading planter

    Size(L×W×H)

    mm

    2230×760×770

    Weight

    kg

    197

    Capacity

    Tray/h

    800-1100

    Structure

    /

    Walking type

    Spreader form

    /

    Rubber belt type

    Paving box volume

    L

    63

    Seed-metering device form

    /

    Outer groove roller type

    Seeding amount adjustment gear number

    Pc

    99 (Commonly used: 60)

    Seeding box volume

    L

    45

    Soil covering device

    /

    Rubber belt type

    Soil covering box volume

    L

    120

    Cover soil leveling method

    /

    Brush

    Conveying drive type

    /

    Motor drive, chain drive

    Work flow

    /

    Seedling tray transportation- spreading- sowing

    - covering- leveling- watering

    Total power

    W

    450

    Supporting power type

    /

    DC

    Any change of technical parameters, there is no further notice.
