    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder

    【Features】:The seeding precision rate can reach 98% above, stable and reliable.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    Nursery Seeding line / Pneumatic Needle Aspiration Precision Seeder is a special equipment for tray precision seeding. It is suitable for automatic seeding of seeds, such as vegetables, flowers and tobacco. The seeding precision rate can reach 98% above, stable and reliable. Our nursery seeding line has been exported to Australia and the U.S.!

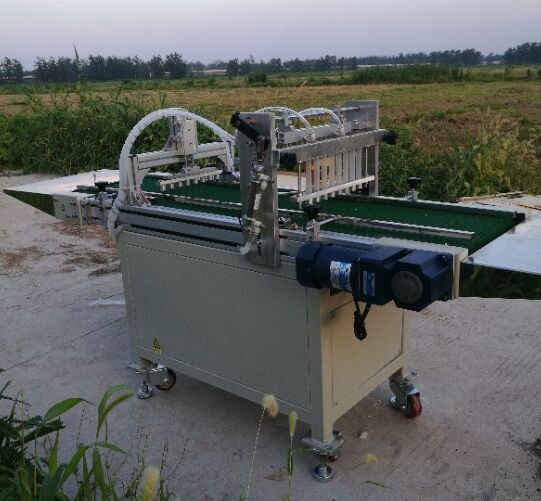

    Model: YB330D (single machine)
    Working process: hole pressing- automatic seeding
    Range: same with above
    Speed of sowing: 330 trays/hour
    Weight: 58kg
    Precision rate: 98% above
    Power: 0.12KW
    Size: L*W*H: 1300*500*850 (MM)

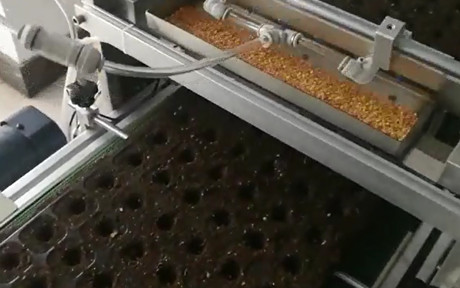

    Pneumatic Needle Aspiration Precision Seeder

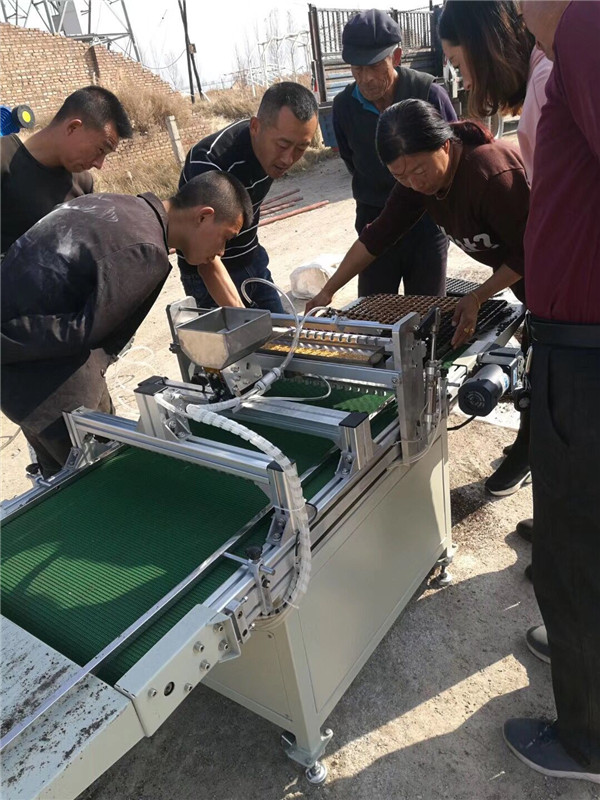

    Pneumatic Needle Aspiration Precision Seeder



    Pneumatic Needle Aspiration Precision Seeder



    Pneumatic Needle Aspiration Precision Seeder

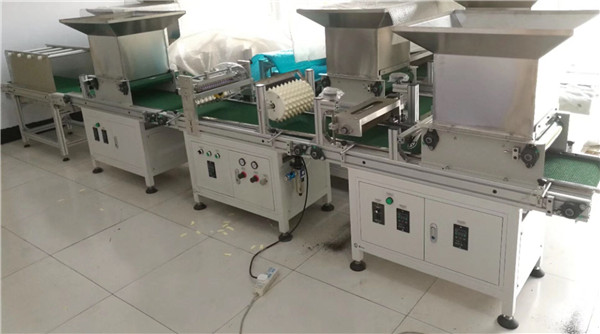

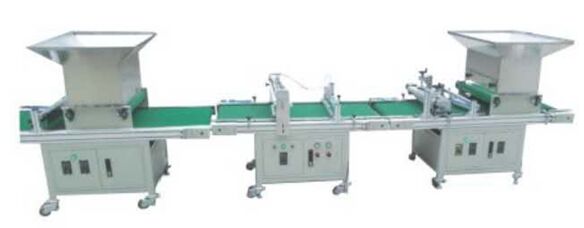

    Model: TL-300 Seeding Line
    Size: 3600*600*1300mm, weight: 180kg.
    Whole line power: 220v, 50/60Hz, 650w.
    Speed: 330 trays/hour.
    Working process: substrate filling- scratching- hole pressing- seeding- soil covering- filling- scratching
    Range: used for sowing tomato, eggplant, cucumber, pepper, squash, flower, cauliflower, cabbage,etc.
    The conveying device for tray loading, seeding and soil covering is equipped with a frequency conversion speed regulation system, which is fully matched with the speed of the next process.
    With automatic photoelectric induction detection system.
    Using a button one-key operating system, paving, pressing holes, seeding, and covering soil can be completed simply and quickly.
    Special seed recovery device, so that seeds are not wasted.
    Precision: 98% above.

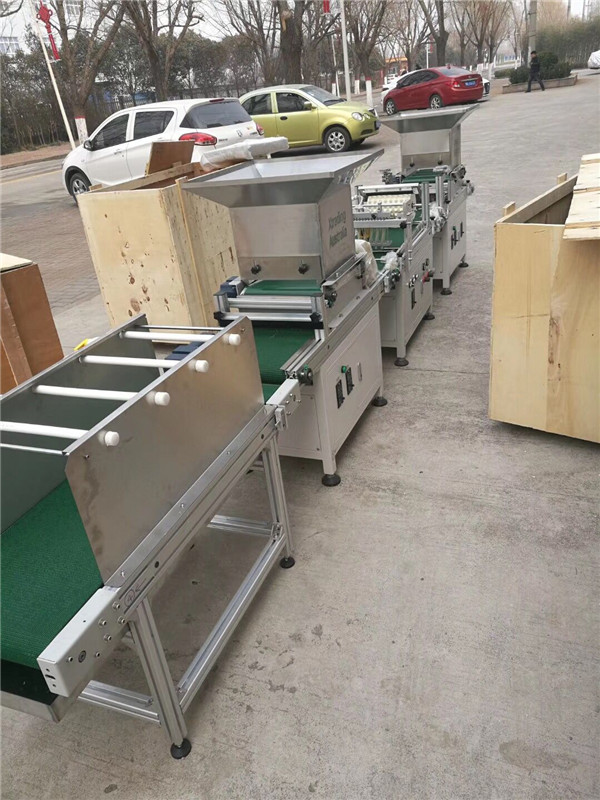

    Model: TL-660 Seeding Line
    Working process: substrate filling- scratching- hole pressing- seeding- soil covering- filling- scratching
    Range: used for sowing tomato, eggplant, cucumber, pepper, squash, flower, cauliflower, cabbage,etc.
    Speed of seeding: 600 trays/hour
    Speed: 600 trays/hour.
    Precision rate: 98% above
    Power: 0.65KW
    Weight: 266KG

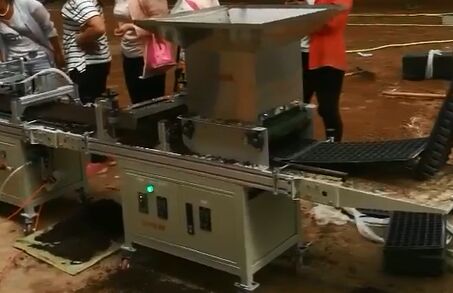

    Pneumatic Needle Aspiration Precision Seeder



     Pneumatic Needle Aspiration Precision Seeder

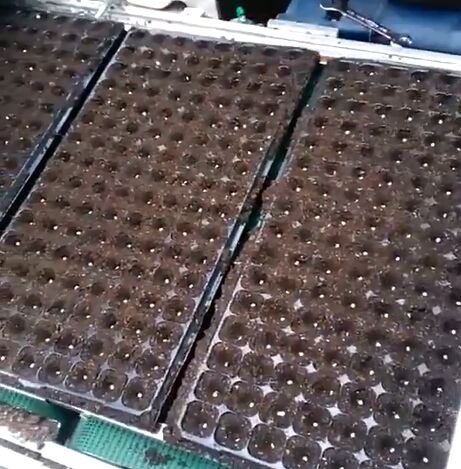

    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder

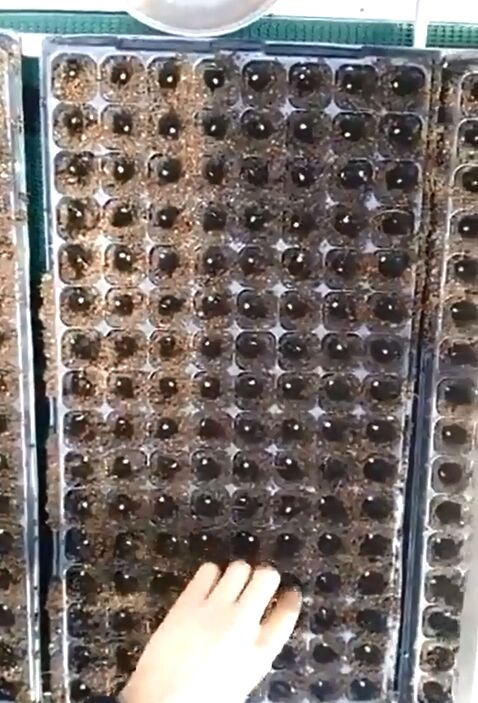

    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder



    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder



    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder



    Nursery Seeding Line Pneumatic Needle Aspiration Precision Seeder




    We can also customize the most suitable seeder according to your requests about the tray, seeds, etc.



    VIDEO:

    Features:

    Pneumatic Needle Aspiration Precision Seeder is a special equipment for tray precision seeding. It is suitable for automatic seeding of seeds, such as vegetables, flowers and tobacco. The precision rate is 98% above. It can only be controlled by chip, stable and reliable.

    Technical Parameters:

    Model: TL-300 Seeding Line
    Size: 3600*600*1300mm, weight: 180kg.
    Whole line power: 220v, 50/60Hz, 650w.
    Speed: 330 trays/hour.
    Working process: substrate filling- scratching- hole pressing- seeding- soil covering- filling- scratching
    Range: used for sowing tomato, eggplant, cucumber, pepper, squash, flower, cauliflower, cabbage,etc.
    The conveying device for tray loading, seeding and soil covering is equipped with a frequency conversion speed regulation system, which is fully matched with the speed of the next process.
    With automatic photoelectric induction detection system.
    Using a button one-key operating system, paving, pressing holes, seeding, and covering soil can be completed simply and quickly.
    Special seed recovery device, so that seeds are not wasted.
    Precision: 98% above.

    Model: TL-660 Seeding Line
    Working process: substrate filling- scratching- hole pressing- seeding- soil covering- filling- scratching
    Range: used for sowing tomato, eggplant, cucumber, pepper, squash, flower, cauliflower, cabbage,etc.
    Speed of seeding: 600 trays/hour
    Speed: 600 trays/hour.
    Precision rate: 98% above
    Power: 0.65KW
    Weight: 266KG


    Any change of technical parameters, there is no further notice.
