【Features】:Chaff Cutter Machine Main Features: 1. Light and easy to move with steel-framed structure. 2. Safe and reliable machine desighed to avoid accidents. 3. Work efficiently with advanced hay-conveying structure and hay-conveying rollers.
Chaff Cutter Machine Introduction:
New design chaff cutter machine is very easy to operate, which is mainly used to corn straw, wheat straw, rice straw and other kinds of crop straw and pasture. These processed materials is suitable for breeding cattle and sheep, deer, horse etc. The chaff cutter can also process cotton stalk, branches, bark, and so on, which can be used for straw generation ethanol, papermaking and artificial board etc.

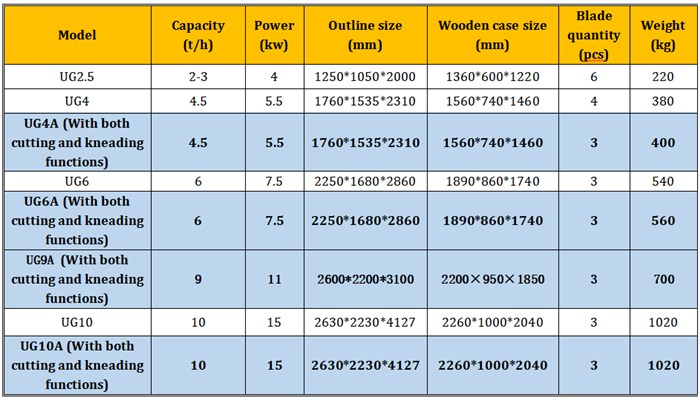

Chaff Cutter Machine technical parameter:
UG9A |
UG6A |
UG4C |
UG2.5 |
||
Motor(kW) |
15 |
7.5 |
5.5 |
4 |
|
Diesel generator(hp) |
≥30 |
≥15 |
≥12 |
≥8 |
|
Production capacity(t/h) |
8-9 |
6-7 |
4-5 |
2-3 |
|
Finished material length (mm) |
12.18.25.35 |
12.18.25.35 |
17.22 |
3-blade: 15.35 |
|
Chain conveyor belt |
√ |
√ |
√ |
× |
|
Dimensions (mm) |
Use |
2620×2140×3390 |
1968×2147×2756 |
1020×1520×2756 |
1150×1230×1695 |
transport |
2620×1720×1850 |
1393×800×1585 |
1020×630×2350 |
1150×510×1050 |
|
Grass roller |
√ |
√ |
√ |
× |
|
Tractor hanger |
× |
× |
√ |
√ |
|
Tractor trailer |
√ |
△ |
△ |
× |
|
Three-wheeled agricultural vehicle coupling |
× |
× |
△ |
△ |
|
Diesel rack |
△ |
△ |
△ |
△ |
|
Diesel engine power input shaft |
△ |
△ |
△ |
× |
|
Rubber tire caster |
△ |
△ |
△ |
△ |
Please note: “√”is standard configuration, “△”is optional, “×”is not applicable.
Application range: to cut green and dry corn stalks, wheat straw, paddy straw, alfalfa and various crop straws and pastures, etc.
Chaff Cutter Machine Main Features:
1. Light and easy to move with steel-framed structure.
2. Safe and reliable machine desighed to avoid accidents.
3. Work efficiently with advanced hay-conveying structure and hay-conveying rollers.
4. Easy to take apart and install.
5. Multi choice engines – electric motors, diesel engines or tractors.
6. Steel structure. Wear-proof blade.
7. Wider and thicker feeding inlet.
8. Strong air blowing function at the dischrging outlet, blowing the cut chaff far away.
9. Pure copper core electric motor, more durable.
10. High quality blade for faster crushing speed, without material blocking.
11. Lowest price for the same productivity.
VIDEO:
Chaff Cutter Machine Main Features:
1. Light and easy to move with steel-framed structure.
2. Safe and reliable machine desighed to avoid accidents.
3. Work efficiently with advanced hay-conveying structure and hay-conveying rollers.
4. Easy to take apart and install.
5. Multi choice engines – electric motors, diesel engines or tractors.
6. Steel structure. Wear-proof blade.
7. Wider and thicker feeding inlet.
8. Strong air blowing function at the dischrging outlet, blowing the cut chaff far away.
9. Pure copper core electric motor, more durable.
10. High quality blade for faster crushing speed, without material blocking.
11. Lowest price for the same productivity.
Chaff Cutter Machine technical parameter:
UG9A |
UG6A |
UG4C |
UG2.5 |
||
Motor(kW) |
15 |
7.5 |
5.5 |
4 |
|
Diesel generator(hp) |
≥30 |
≥15 |
≥12 |
≥8 |
|
Production capacity(t/h) |
8-9 |
6-7 |
4-5 |
2-3 |
|
Finished material length (mm) |
12.18.25.35 |
12.18.25.35 |
17.22 |
3-blade: 15.35 |
|
Chain conveyor belt |
√ |
√ |
√ |
× |
|
Dimensions (mm) |
Use |
2620×2140×3390 |
1968×2147×2756 |
1020×1520×2756 |
1150×1230×1695 |
transport |
2620×1720×1850 |
1393×800×1585 |
1020×630×2350 |
1150×510×1050 |
|
Grass roller |
√ |
√ |
√ |
× |
|
Tractor hanger |
× |
× |
√ |
√ |
|
Tractor trailer |
√ |
△ |
△ |
× |
|
Three-wheeled agricultural vehicle coupling |
× |
× |
△ |
△ |
|
Diesel rack |
△ |
△ |
△ |
△ |
|
Diesel engine power input shaft |
△ |
△ |
△ |
× |
|
Rubber tire caster |
△ |
△ |
△ |
△ |
Please note: “√”is standard configuration, “△”is optional, “×”is not applicable.
Application range: to cut green and dry corn stalks, wheat straw, paddy straw, alfalfa and various crop straws and pastures, etc.
We can also install the towing bar and big wheels:
Any change of technical parameters, there is no further notice.
