    UGT-12 High Capacity Large Peanut Sheller with Dedusting Device

    【Features】:UGT-12 High Capacity Peanut Sheller Features: 1.No dust(no need to wear masks or hats) 2.Very low noise 3.High shelling rate: 99%

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

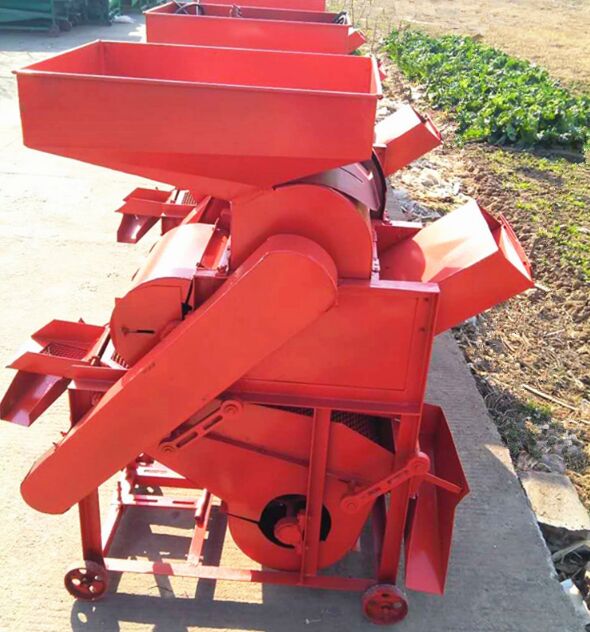

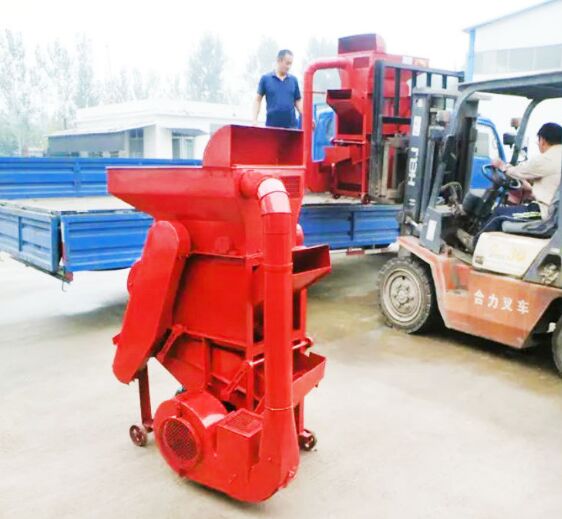

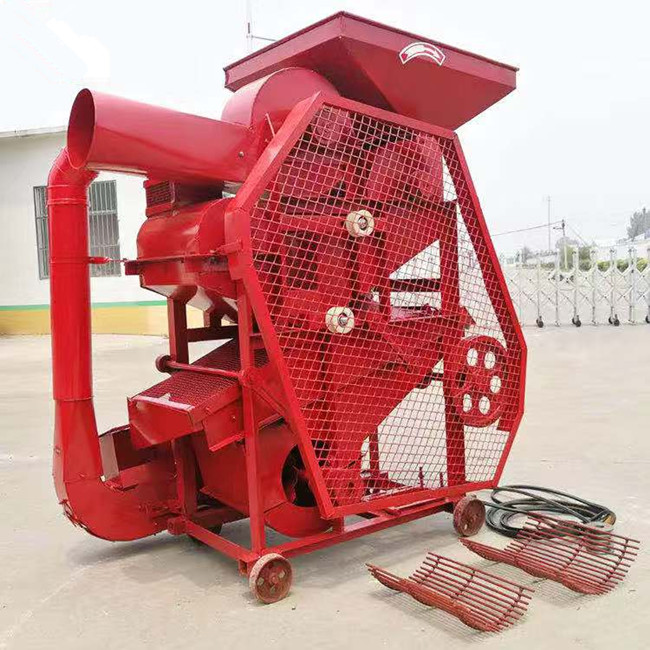

    UGT-12 High Capacity Peanut Sheller / Peanut Hulling Machine with Dedusting Device:

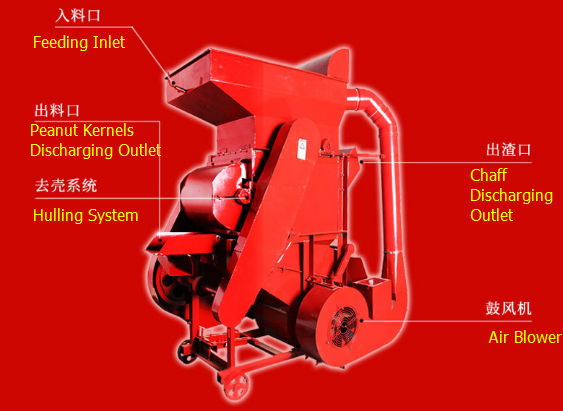

    This model is an integrated peanut shelling machine with functions of peanut shelling, shell and kernels separation, and dedusting. It can be powered by customized electric motor or diesel engine.

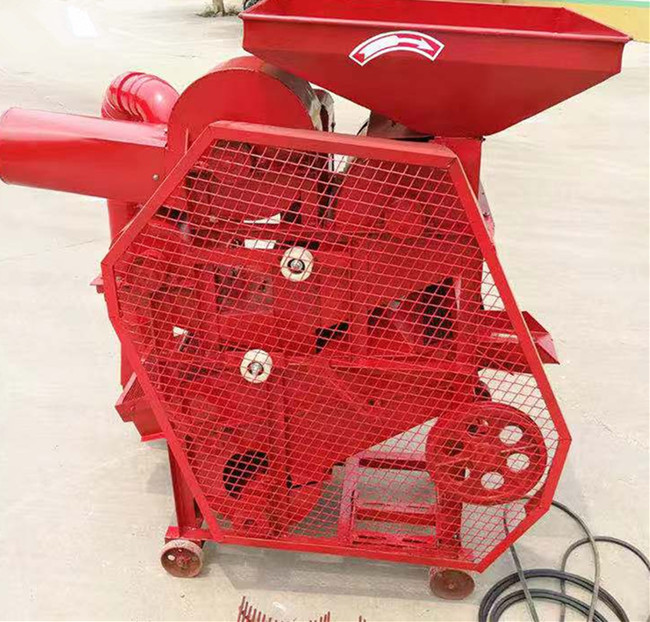

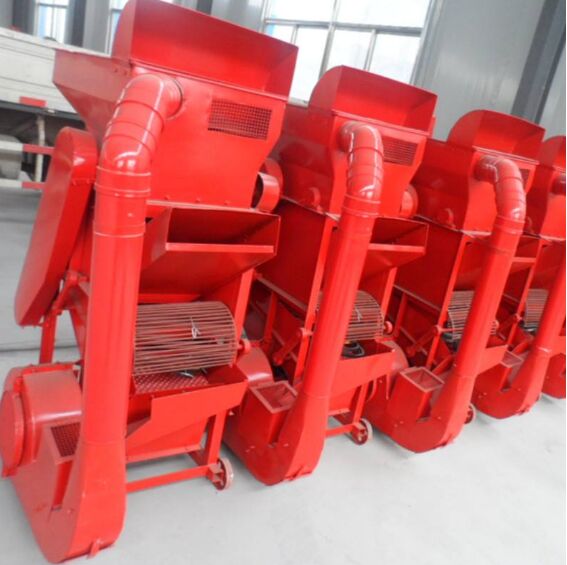

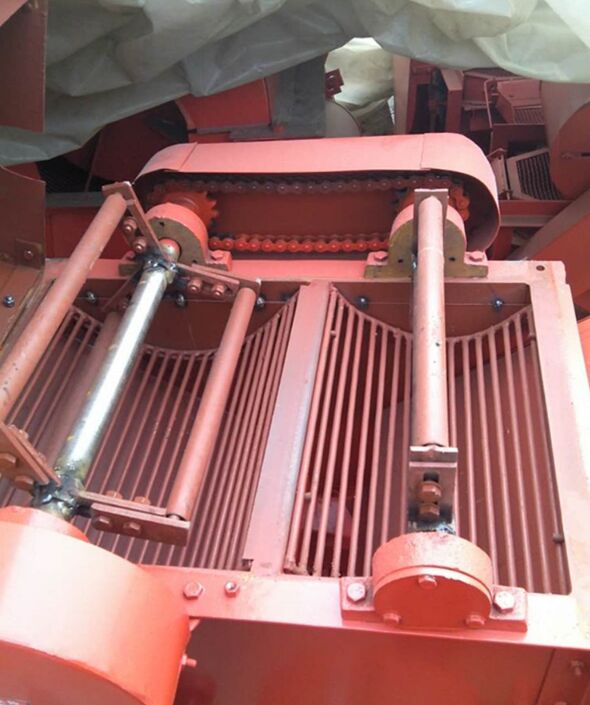

    UGT12 peanut sheller.jpg

    High Capacity Peanut Sheller


    High Capacity Peanut Sheller


    High Capacity Peanut Sheller


    High Capacity Peanut Sheller

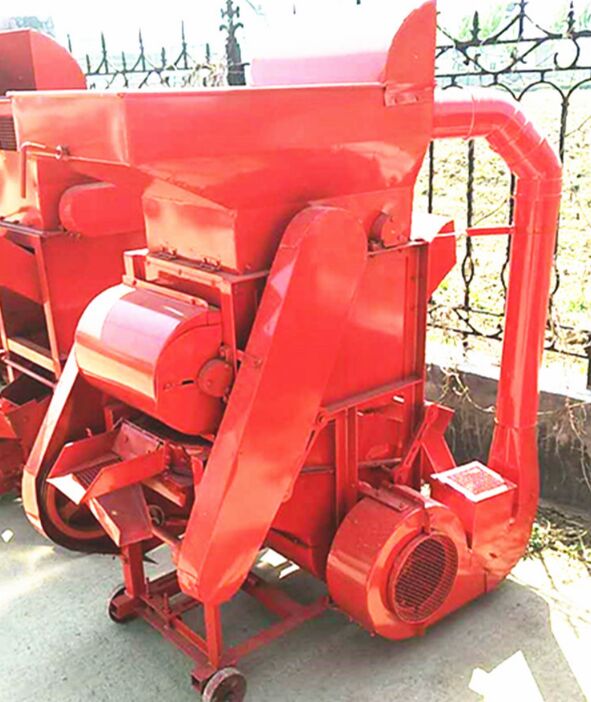

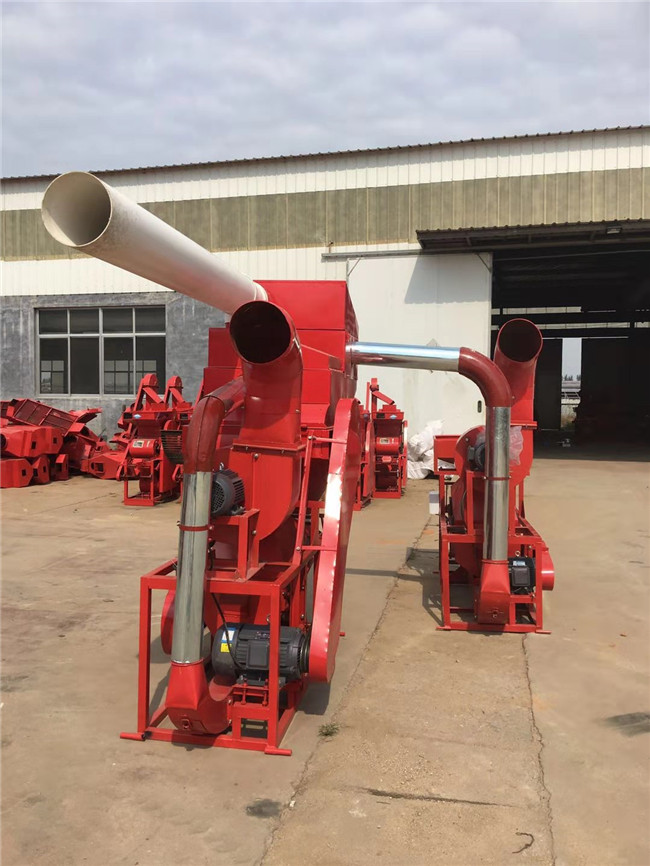

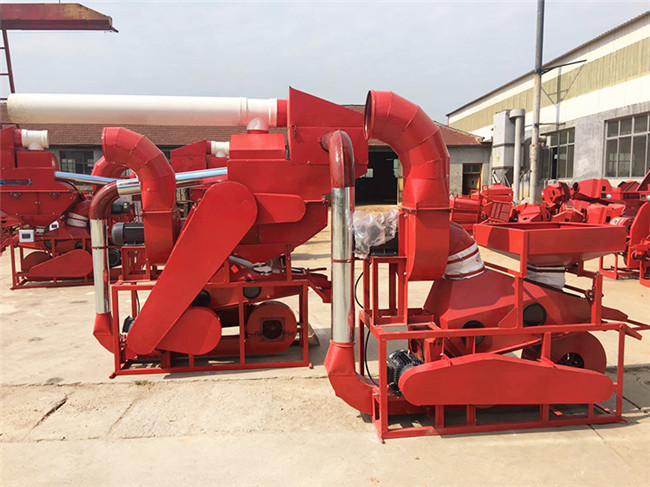

    We also install the strong dedusting system for the machine to ensure there's no any dust in operation:
    High Capacity Large Peanut Sheller

    High Capacity Large Peanut Sheller

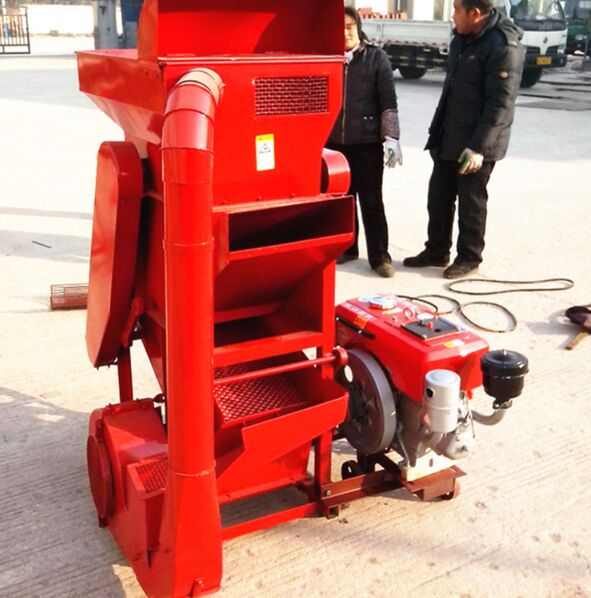

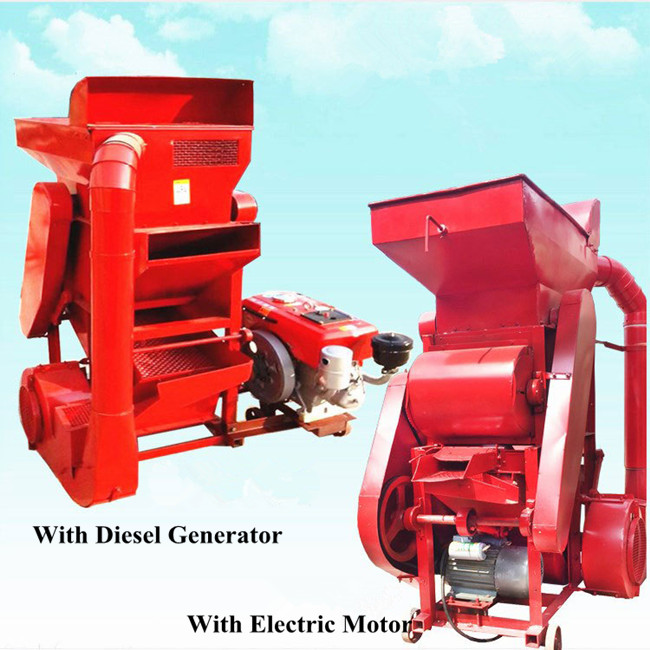

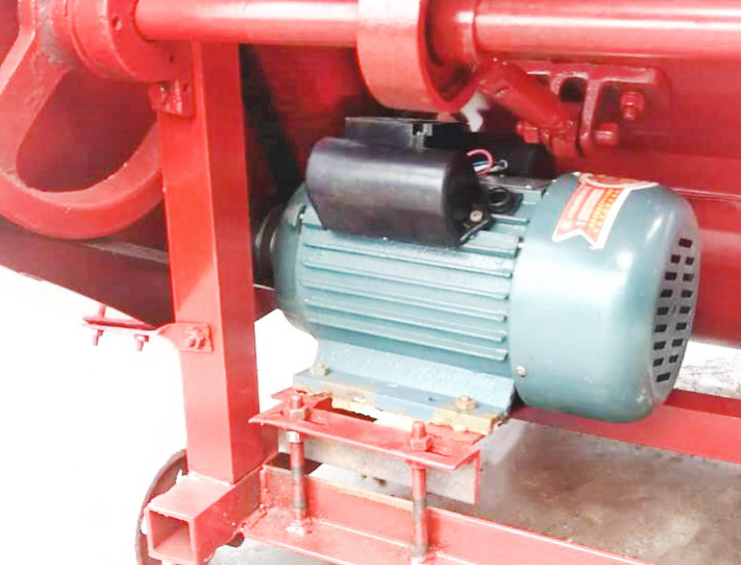

    Installation position of the electric motor and diesel engine:
    We can customize the right electric motor for you according to your local voltage, hertz, single-phase or three-phase.

    High Capacity Peanut Sheller

    peanut sheller


    UGT-12 High Capacity Peanut Sheller Features:
    1.No dust(no need to wear masks or hats) as we install the strong dedusting system for the machine.
    2.Very low noise,
    3.High shelling rate: 99%, and the shelled peanut kernels are clean.
    4.Durable, long service time, low cost.


    UGT-12 High Capacity Peanut Sheller Technical Paramter:
    Model: UGT-12
    Motor: 3KW/220V/380V
    Capacity: 1000-1200KG/H
    Machine Size: 130*70*160cm
    Machine Weight: 130KG(net weight)
    Percentage of damage: <3%
    Threshing rate: >99%
    Roller rotation speed: 290r/min
    Roller length: 300mm
    Air fan revolving speed: 1615-1680r/min
    Sieve boxes frequency: 495 times/min


    The packing:

    UGT12 High Capacity Peanut Sheller



    VIDEO:



    Features:

    UGT-12 High Capacity Peanut Sheller Features:
    1.No dust (no need to wear masks or hats)
    2.Very low noise
    3.High shelling rate: 99%, and the shelled peanut kernels are clean.
    4.Durable, long service time, low cost.


    High Capacity Peanut Sheller

    High Capacity Peanut Sheller

    Technical Parameters:

    UGT-12 High Capacity Peanut Sheller Technical Paramter:
    Model: UGT-12
    Motor: 3KW/220V/380V
    Capacity: 1000-1200KG/H
    Machine Size: 130*70*160cm
    Machine Weight: 130KG(net weight)
    Percentage of damage: <3%
    Threshing rate: >99%
    Roller rotation speed: 290r/min
    Roller length: 300mm
    Air fan revolving speed: 1615-1680r/min
    Sieve boxes frequency: 495 times/min

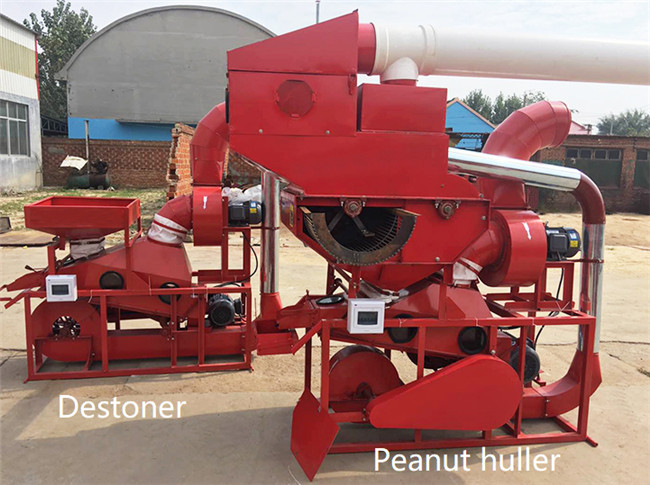

    We can also design larger processing capacity peanut sheller. Its output capacity can reach 2T/H at least:
    Large peanut sheller

    Large peanut sheller

    Large peanut sheller


    Any change of technical parameters, there is no further notice.
