    HOME > PRODUCTS > Corn Threshing Machine >

    Products List

    UGTL-1 Large Capacity Maize Thresher

    【Features】:Large maize thresher capacity: dry corn 60-70T/Hour

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

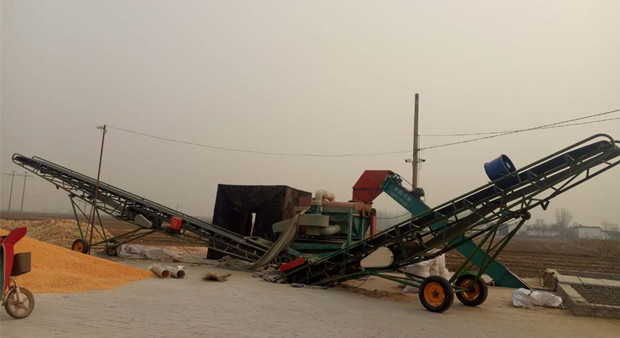

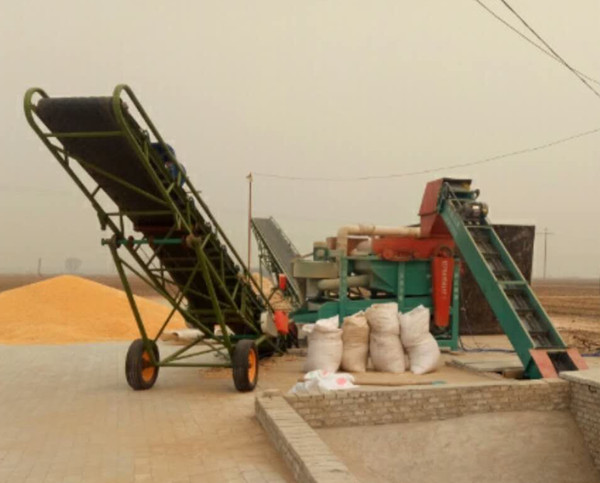

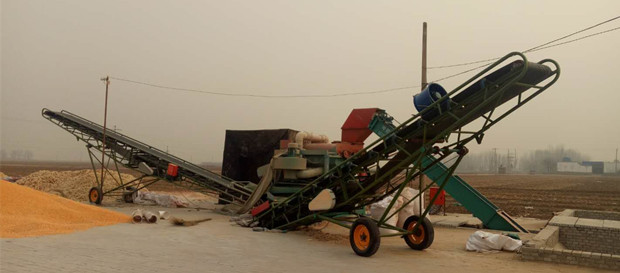

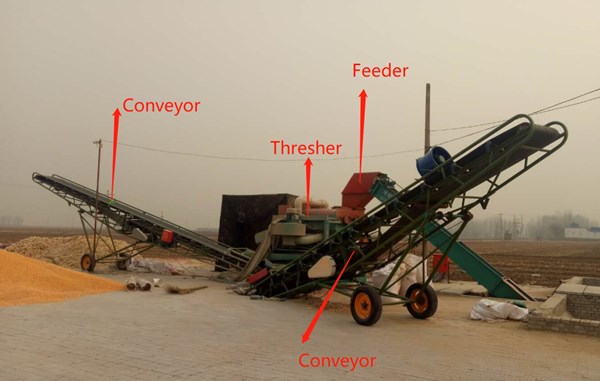

    Our UGTL-1 large capacity maize thresher mainly consists of:
    1 unit of thresher (3.3*1.9*1.5m);
    1 unit of feeding machine (0.5*0.5*9m and we can disassemble this part during packaging to save packaging volume) (this one can be replaced by your forklift);
    2 units of conveyors (each unit size: 0.8*1*10m and can be disassembled during packaging) (not necessary);
    1 unit of specific electric control cabinet.
    Large Capacity Maize Thresher


    Main Features:
    1. This large capacity maize thresher is developed by us based on improving the 6-shaft maize thresher.
    2. Its shaft diameter: 540mm, length: 1.8m (The shaft has been thickened and lengthened).
    3. It has independent air blower. There are 5 air suction points: two points at the feeding inlet, two points at the kernels discharging outlet, and one point at the cob discharging outlet, which can make the threshed corn kernels much cleaner and make it easier to install other environment-friendly equipment.
    4. The machine is also equipped with a dedicated electric control cabinet for the thresher, and the frequency converter controls the feeding of the feeder, realizing that the thresher will never stop, so as to achieve the maximum output of the thresher, and the machine truly realizes the purpose of automatic feeding.


    Main Technical Parameter:
    Outline size: L*W*H= 3.3m*1.9m*1.5m
    Sieve size: Length: 2.3m, Width: 1.5m
    Capacity: wet corn 40-50T/Hour (it can both husk and thresh the corn)
    Dry corn 60-70T/Hour (it can both husk and thresh the corn)
    Main motor of the thresher: 18.5kw
    Sieve motor: 2.2kw
    Motor for secondary recovery: 1.1kw
    Blower: 5.56kw
    Conveyor: 4.0kw
    Lift motor:1.1kw
    Feeding machine: 3.0kw

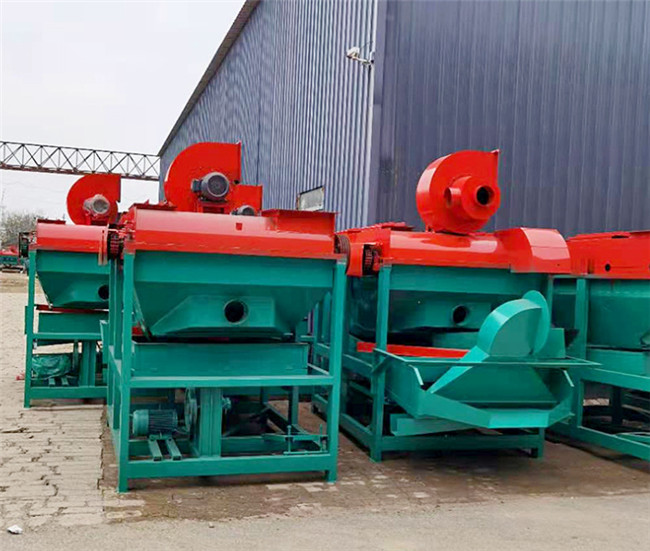

    Exported to USA:
    UGTL-1 Large Capacity Maize Thresher

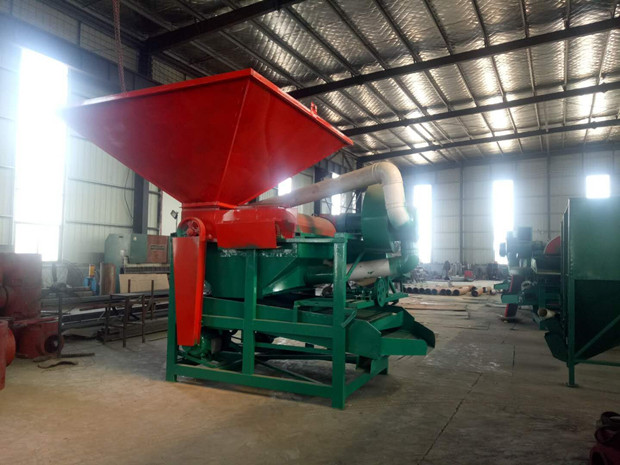

    We can design this kind of feeding inlet for a forklift feeding:

    Large Capacity Maize Thresher

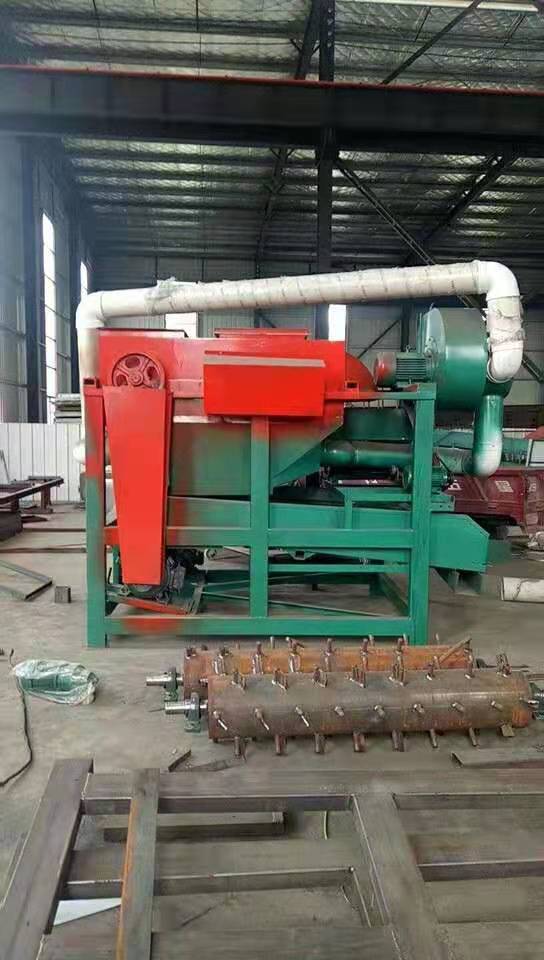

    We can also design this kind of feeding inlet and the feeding machine:

    UGTL-1 Large Capacity Maize Thresher


    Large Capacity Maize Thresher


    Large Capacity Maize Thresher


    Large Capacity Maize Thresher




    After-Sales Service:
    1. Technical Consultation:
    If you have problems when using our machine, please read the instructions first.
    If you can’t solve the problem, then don’t hesitate to contact us. Our engineer will provide customized technical support for you from each time!
    2. Maintenance:
    1)We would supply you with the maintenance guide from each time.
    2)All accessories are guaranteed to be ready in your place within 72 hours.
    3)All accessories required by customers should be unconditionally satisfied!
    4)Please keep in mind that you should also do the related necessary work according to the instructions before and after each time of operation. Considerate maintenance brings you the longer service life of your machine.
    3. Three-Year Quality Guarantee:
    The machine has three-year quality guarantee. During the guarantee period, if there is any quality problem with any part of the machine, we should replace the part for free.


    Features:

    1. This large capacity maize thresher is developed by us based on improving the 6-shaft maize thresher.
    2. Its shaft diameter: 540mm, length: 1.8m (The shaft has been thickened and lengthened).
    3. It has independent air blower. There are 5 air suction points: two points at the feeding inlet, two points at the kernels discharging outlet, and one point at the cob discharging outlet, which can make the threshed corn kernels much cleaner and make it easier to install other environment-friendly equipment.
    4. The machine is also equipped with a dedicated electric control cabinet for the thresher, and the frequency converter controls the feeding of the feeder, realizing that the thresher will never stop, so as to achieve the maximum output of the thresher, and the machine truly realizes the purpose of automatic feeding.

    Technical Parameters:

    Outline size: L*W*H= 3.3m*1.9m*1.5m
    Sieve size: Length: 2.3m, Width: 1.5m
    Capacity: wet corn 40-50T/Hour
    Dry corn 60-70T/Hour
    Main motor of the thresher: 18.5kw
    Sieve motor: 2.2kw
    Motor for secondary recovery: 1.1kw
    Blower: 5.56kw
    Conveyor: 4.0kw
    Lift motor:1.1kw
    Feeding machine: 3.0kw

    Any change of technical parameters, there is no further notice.
