UGT-10 Multifunctional Crops Thresher for Chia, Maize, Wheat, Millet, Sorghum, Paddy, Lentil, Soybean, Peas, Mung Bean Threshing and Cleaning:
This model has been exported to many countries. Please check the OVERSEAS CASES.
Feedbacked from Canadian client Bill:
2)Power: diesel generator or electric motor.
3)Portable frame: according to our African clients’ requests, we make the portable frame that can be pulled by a tractor in front. And the two big rubber wheels(with diameter 50cm) are solid and durable, which can ensure there’s no any problem to run on the gravels road!

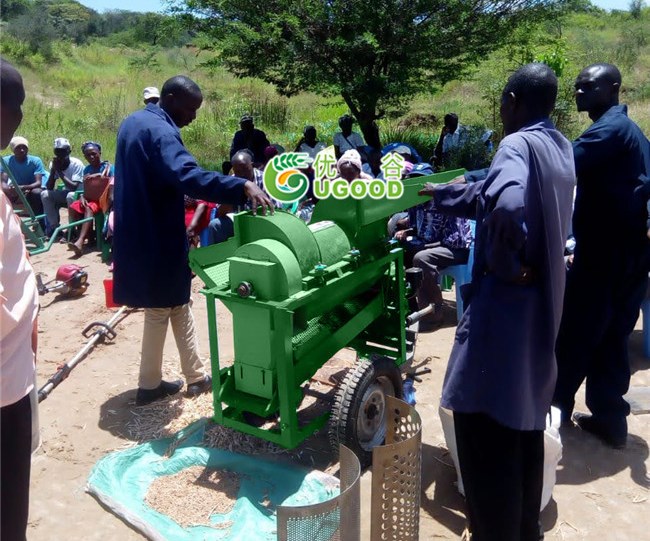

Chia thresher exported to Africa:
Exported to Canada:
Exported to Germany:
Package:
4)We send you 5 different sizes of crops sieves when you buy it! We just need to replace the right sieve when threshing.
For example:
5)Vibrating screen and air blower for cleaning (this design can remove big and small impuruties efficiently):
Features:
1.Used to thresh and separate DIFFERENT crops seeds from straws and stalks, with stable threshing performance, high threshing rate, convenient cleaning method, easy operation, portable usage, wide application.
2.With strong cleaning function: due to the strong air blower and vibrating screen installed, which can remove big and small impurities efficiently!
3.Supplied with different threshing screens for different crops seeds, like chia, maize, beans, paddy, millet, sorghum, quinoa, etc.
4.Fitted with two big wheels and towing frame for tractor (bigger and more durable wheels for more convenient operation!)
5.Machine material adopts much thicker steel plate, more durable!
6.We provide sufficient Spare Parts for at least 3 years of use!
7.One-year quality guarantee from the date when you receive goods: during the guarantee period, if there has any problem with any part of the machine, we should replace the part for free at once by DHL or FedEx!
Technical Parameters:
|
Model |
Power |
Number of Main Turns |
Production Capcity |
Un-Threshed Rate |
Total Loss Rate |
Impurities Rate |
Machine Size&
Weight |
Total Wooden Packing Size&Weight for Machine, Generator and Frame |
|
UGT-10 |
2.7-3.0KW /Single-Phase Two-Pole |
900-1000R/MIN |
Maize: 1-2T/Hour; Beans: 800-1000 KG/Hour; Wheat, Millet, Paddy, etc: 700KG/Hour |
≤0.3% |
≤1% |
≤1% |
Machine size: 1.2*0.5*1.1m (L*W*H) Weight:80KG |
Packing size: 1.41*0.52*1.1m Packing weight: 200KG |
Diesel Engine Generator of the Machine:
Diesel generator technical parameter:
|
Diesel Generator |
4-6hp |
|
Engine type |
|
|
Firebox |
Eddy
|
|
Cylinder diameter(mm) |
75 |
|
Stroke(mm) |
80 |
|
Displacement(L) |
0.353 |
|
Rated power/revolving speed(kw/r/min) |
4.85/2600 |
|
Maximum torque(N.m) |
/ |
|
Maximum torque point revolving speed(r/min) |
/ |
|
Fixed point fuel oil consumption((g/kw.h)) |
≤280.2 |
|
Idling(r/min) |
≤1000 |
|
Compression ratio |
22 |
|
Starting method |
hand |
|
Net weight(kg) |
60 |
|
Outline size(length*width*height)(mm) |
589×342 |
Diesel Generator Features:
1. Light weight, small volume.
2. Fuel oil saving, easy to start
3. It is suitable for various small agricultural machinery, such as irrigation machinery, threshing machine, small truck, hand tractor, etc.
GETTING MORE FROM YOUR THRESHER
1. Free your hands from busy farm work!
2. Every farmer can convert their Thresher to be a profit centre!
Consider threshing for your neighbors and you charge a monetary fee or a percentage of output.
VIDEO:
Inner structure:
Millet threshing:
Maize threshing:
Soybean threshing:
Sorghum threshing:
Quinoa threshing:
WE ALSO HAVE THE BIGGER ONE MODEL UGT-15:
CAPACITY: 1-4T/HOUR
1.Used to thresh and separate DIFFERENT crops seeds from straws and stalks, with stable threshing performance, high threshing rate, convenient cleaning method, easy operation, portable usage, wide application.
2.With strong cleaning function: due to the strong air blower and vibrating screen installed, which can remove big and small impurities efficiently!
3.Supplied with different threshing screens for different crops seeds, like chia, maize, beans, paddy, millet, sorghum, quinoa, etc.
4.Fitted with two big wheels and towing frame for tractor (bigger and more durable wheels for more convenient operation!)
5.Machine material adopts much thicker steel plate, more durable!
6.We provide sufficient Spare Parts for at least 3 years of use!
7.One-year quality guarantee from the date when you receive goods: during the guarantee period, if there has any problem with any part of the machine, we should replace the part for free at once by DHL or FedEx!
|
Model |
Power |
Number of Main Turns |
Production Capcity |
Un-Threshed Rate |
Total Loss Rate |
Impurities Rate |
Machine Size& Weight |
Total Wooden Packing Size&Weight for Machine, Generator and Frame |
|
UGT-10 |
2.7-3.0KW /Single-Phase Two-Pole |
900-1000R/MIN |
Maize: 1-2T/Hour; Beans: 800-1000 KG/Hour; Wheat, Millet, Paddy, etc: 700KG/Hour |
≤0.3% |
≤1% |
≤1% |
Machine size: 1.2*0.5*1.1m (L*W*H) Weight:80KG |
Packing size: 1.41*0.52*1.1m Packing weight: 200KG |
Any change of technical parameters, there is no further notice.
