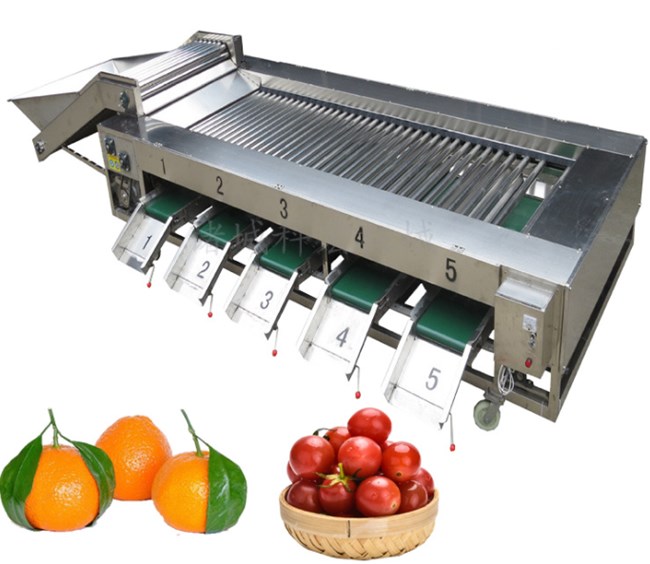

    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit

    【Features】:The sorting specifications and sorting grades can be customized according to customers' requirements.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

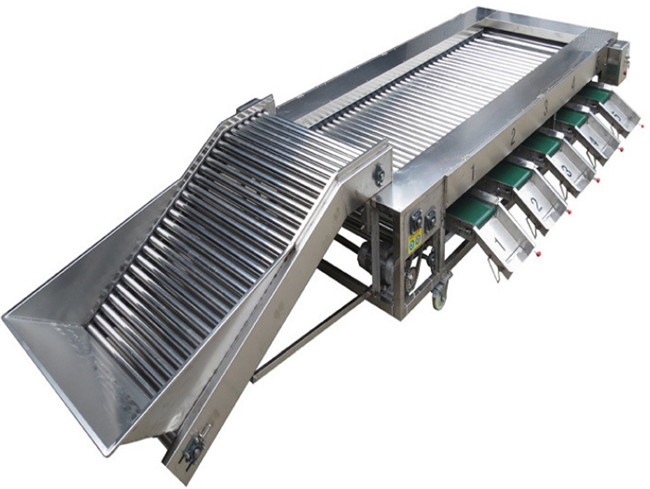

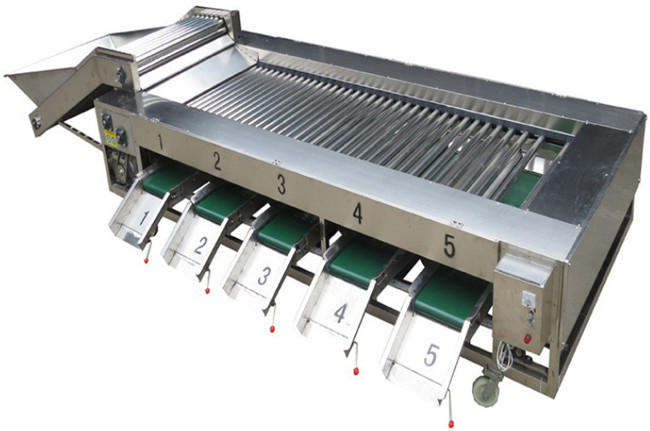

    Fruits and vegetables grading sorting machine or grader with rolling bars:
    1. The sorting specifications and sorting grades can be customized according to customers' requirements, suitable for the selection of spherical fruits and vegetables or oblong fruits and vegetables.
    2. This equipment is made of stainless steel and is composed of fruit conveyor and roller bar type sorting machine;
    3. The fruit feeding conveyor achieves uniform feeding through the automatic rotation of the roller bar, and the roller type sorting machine sorts fruits and vegetables according to the diameter of the fruits and vegetables;
    4. Sprinkler device, water collection tank, waste fruit collection and conveying device can be configured according to customer requirements.

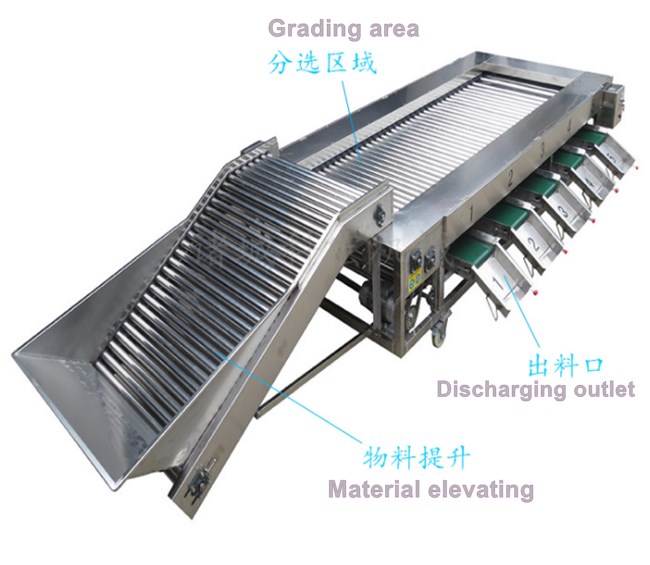

    Main structure and working principle

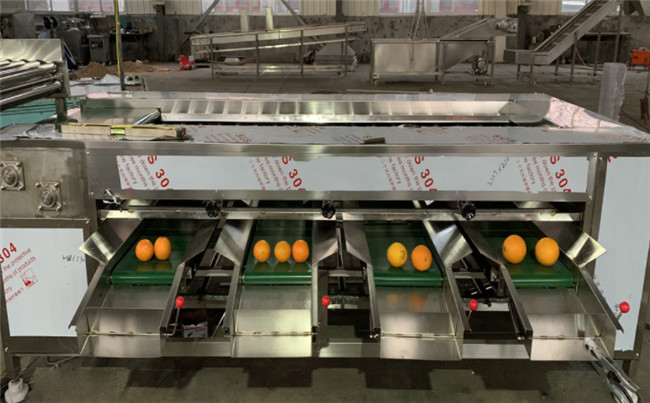

    The rolling bar fruit and vegetable sorting machine is composed of a frame, the rolling bars, a conveyor chain, a transmission and other parts. After washing, the fruits are put or conveyed on the roller bar, and move forward on the roller bar while rotating 360° under the drive of the roller bar. In this way, the operators on both sides of the machine can clearly observe the condition of the fruits, and pick out the unqualified fruits, and place them in the waste fruit collection device or in the waste fruit collection conveyor for further processing.

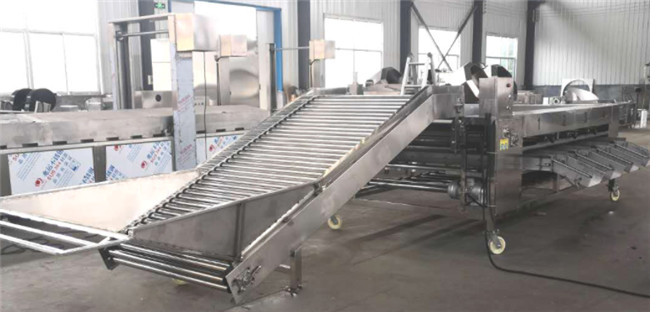

    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit

    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit

    Features:

    1. The design is very scientific and reasonable, with highly accurate sorting effect;
    2. Large processing capacity;
    3. Stable conveying, without damaging any fruits and vegetables;
    4. Simple installation and operation;
    5. Strong and durable.

    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit

    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit


    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit


    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit


    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit


    Fruits Vegetables Grading Sorting Machine with Rolling Bars for Dates Fruit


    Technical Parameters:

    Model

    Capacity (T/H)

    Power (kw)

    Remarks

    UGFJ-3

    1~3

    1.1

    1. We can customize the machine size and capacity accorindg to your specific requirement.

    2. The equipments speed can be adjusted.

    UGFJ-5

    4~6

    1.5

    UGFJ-10

    8~10

    2.2

    UGFJ-20

    15~20

    3

    Any change of technical parameters, there is no further notice.
