    Corn Stripping Machine Maize Stripping Machine

    【Features】:Made up of thicker steel material for the corn husker body. The middle two rollers: Hollow steel shaft. Outer rollers: Car tire material. More durable!

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    UGH-01 Blowing Type Corn Stripping Machine can peel off dry corn husk efficiently with strong air blowing function. Made up of thicker steel material for the corn husker body. The middle two rollers: Hollow steel shaft. Outer rollers: Car tire material. More durable!
    Corn Stripping Machine rollers

    It can be powered by electric motor or diesel engine. Please provide your local voltage, hertz, single-phase or three-phase so that we can customize the right motor.

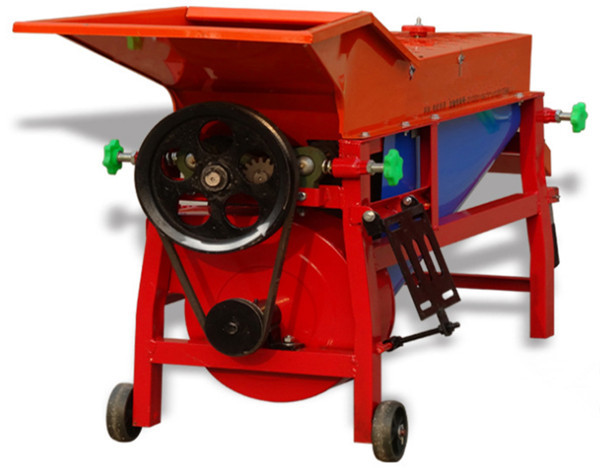

    UGH-01 Blowing Type Corn Husker Machine

    Corn Stripping Machine Maize Stripping Machine



    Features:
    1. High husking efficiency, which can reach 2T/Hour;
    2. Less grain loss;
    3. Very easy to disassemble and adjust;

    4. Made up of thicker steel material for the machine body. The middle two rollers: Hollow steel shaft. Length*diameter: 1m*60cm. Rollers on both sides: Car tire material. Length*diameter: 1m*70cm. More durable, long service life;
    5. Machine body paint process;
    6. Strong fan, blowing husk far away;
    7. More suitable for dry corn;
    8. Factory direct sales, no intermediaries earn the difference!


    UGH-01 Blowing Type Corn Husker Machine
    UGH-01 Blowing Type Corn Husker Machine


    Blowing Type Corn Husker Machine



    Corn Stripping Machine Maize Stripping Machine




    After-Sales Service:

    1. Technical Consultation:
    If you have problems when using our machine, please read the instructions first.
    If you can’t solve the problem, then don’t hesitate to contact us. Our engineer will provide customized technical support for you from each time!
    2. Maintenance:
    1)We would supply you with the maintenance guide from each time.
    2)All accessories are guaranteed to be ready in your place within 72 hours.
    3)All accessories required by customers should be unconditionally satisfied!
    4)Please keep in mind that you should also do the related necessary work according to the instructions before and after each time of operation. Considerate maintenance brings you the longer service life of your machine.
    3. One-Year Quality Guarantee:
    The machine has one-year quality guarantee. During the guarantee period, if any part of the machine is defective due to the quality problem, we should replace the part for free by express in 3 working days.

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine

    Blowing Type Corn Husker Machine


    VIDEO:



    Features:

    1. High husking efficiency, which can reach 2T/Hour;
    2. Less grain loss;
    3. Very easy to disassemble and adjust;

    4. Made up of thicker steel material for the machine body. The middle two rollers: Hollow steel shaft. Length*diameter: 1m*60cm. Rollers on both sides: Car tire material. Length*diameter: 1m*70cm. More durable, long service life;
    Corn Stripping Machine
    5. Machine body paint process;
    6. Strong fan, blowing husk far away;
    7. More suitable for dry corn;
    8. Factory direct sales, no intermediaries earn the difference!

    Technical Parameters:

    Husker Specification

    Performance Parameter

    Accessory Configuration

    Name

    Blowing Type Corn Husker

    Capacity

    2T/Hour

    Motor Power

    2.2kw

    Dimension

    1460*490*790mm

    Husking Rate

    98%

    Voltage

    220v, 110V, etc. (the motor can be customized)

    Weight

    60kg

    Motor Working Temperature

    70

    Motor Rotating Speed

    2800turns/minute

    Packing Size

    1460*490*790mm

    Husker Rotating Speed

    700turns/minute

    Transmission Belt

    B1100





    We have also developed the new model UGH-03 Fresh Sweet Corn Husker specifically for sweet corn husking with unique structure. Please check the details: Small Specific Fresh Green Sweet Corn Husker
    Small Specific Fresh Green Sweet Corn Husker Corn Shucking Machine UGH-03




    Small Specific Fresh Green Sweet Corn Husker Corn Shucking Machine UGH-03





    Any change of technical parameters, there is no further notice.
