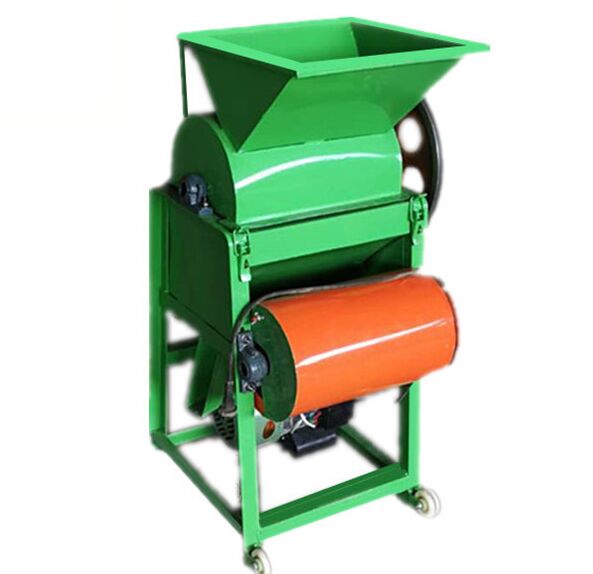

    UGT-11 Home Use Peanut Shelling Machine Groundnut Decorticator

    【Features】:Peanut Shelling Machine has the features of low kernels broken rate, less impurities, good sorting effect and high hulling efficiency.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    Peanut Shelling Machine Groundnut Decorticator


    Peanut Shelling Machine



    peanut shelling machine.jpg

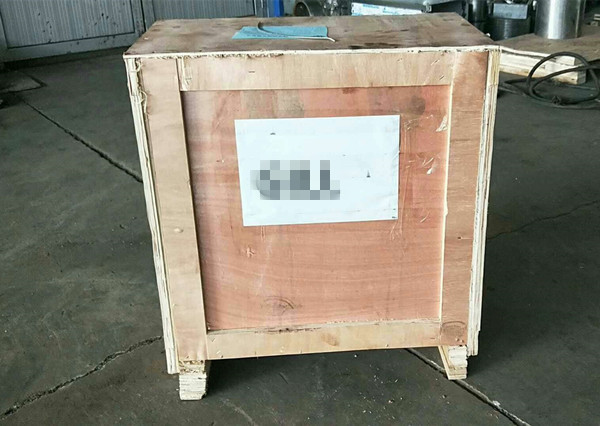

    We package the machine with standard export wooden box:

    Peanut Shelling Machine

    Peanut Shelling Machine, Peanut Sheller, Groundnut Decorticator:
    Peanut shelling machine is also called peanut sheller, peanut husking machine, peanut hulling machine or groundnut decorticator.
    Peanut shelling machine is mainly used to remove the peanut shell, and it has the features of low kernels broken rate, less impurities, good sorting effect and high hulling efficiency.


    Peanut shelling machine structure:
    Peanut shelling machine consists of rasp bar, grid bar, concave, draught fan, gravity separation part and twice elevator. It has simple and compact structure, easy operation method, stable and reliable performance.

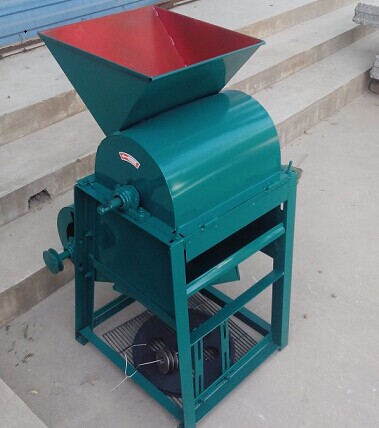

    Peanut Shelling Machine

    UGT11 Home Use Peanut Shelling Machine Groundnut Decorticator


    Peanut shelling machine working principle:
    Peanuts are sent to the rough grid manually. Due to the board turning and the rolling force between the fixed grid bar and the concave, the peanut shell is removed. And shells and kernels fall through the grid mesh down to the air duct, and the fan blows shells out. The kernels and the unshelled small peanuts fall into the gravity separator. The separated kernels are sent upward to the outlet and the separated unshelled small peanuts are sent downwards to the elevator, and the elevator sends the unshelled peanut to the fine grid mesh to be shelled again until the whole batch of peanuts are all shelled.
    Peanut Shelling Machine, Peanut Sheller, Groundnut DecorticatorPeanut Shelling Machine, Peanut Sheller, Groundnut Decorticator




    Peanut shelling machine technical parameter:
    Yield: 400kg/h,shelling rate:>95%
    Breakage rate:≤5%,cleanliness:≥95.5%
    External dimension: (L×W×H)1200mm×660mm×1240mm
    Power: YL9032-2 Grade -2.2KW
    Machine weight: (with motor) 137kg
    Number of operators: 1-2




    Features:

    It has the features of low kernels broken rate, less impurities, good sorting effect and high hulling efficiency.

    Technical Parameters:

    Peanut shelling machine technical parameter:
    Yield: 400kg/h,shelling rate:>95%
    Breakage rate:≤5%,cleanliness:≥95.5%
    External dimension: (L×W×H)1200mm×660mm×1240mm
    Power: YL9032-2 Grade -2.2KW
    Machine weight: (with motor) 137kg
    Number of operators: 1-2


    Any change of technical parameters, there is no further notice.
