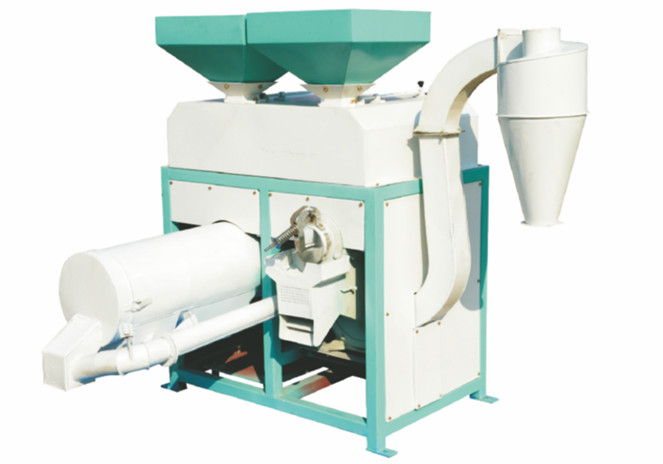

UG30 Maize Kernel, Grits and Powder Machine mainly has two functions: corn peeling and corn grits making. This machine is a combination equipment which consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing.

The machine is installed a motor with 11KW, 380V, and can process 500kg of corn, wheat, sorghum and paddy per hour.

Working Principle:
The clean raw grain is conveyed to the feeding inlet for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process and further cleaning micro powder and micro impurities in the corn grits.

All dry processing technology:
This machine adopts dry peeling technology. It doesn't need water moisturing. Compared with wet peeling technology, this processing method is more sanitary.

Functions:
1.Internally installed efficient winnowing and dust removal fan can remove and collect corn skin and the impurities and dust from grits processing, and then eliminate and collect these skins and impurities by cyclone.
2.High yield, good effect
The discharging outlet of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve. Ensure the effective friction with alloy roller so as to realize better peeling effect.
3.Low energy consumption, wide usage
Assembled with peeling and grits and flour milling functions, the machine unit adopts 11KW motor as the power equipment to reduce input cost. It can be applied in corn, wheat and sorghum peeling, kernel and flour making.

Tips of the machine set operation:
Put a piece of magnet at the feeding inlet and form a simple magnetic separation system at the feeding inlet so as to adsorb the irony in the grains.
Realize simple cleaning to the grain surface by utilizing internally installed blower.
