    UG-101B Soil Tillage Machine with Rotary Cultivator or Single Plowshare

    【Features】:UG-101B Soil Tillage Machine Advantages: 1. Casting and strengthening base plate, branded motor. Longer service life. 2. Fuel saving. 3. It also has lighting facility installed and can work at night. 4. Wide application.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    UG-101B Soil Tillage Machine with Rotary Cultivator or Single Plowshare:
    As the manufacturer, we have full spare parts with competitive prices, short production cycle and timely supply!

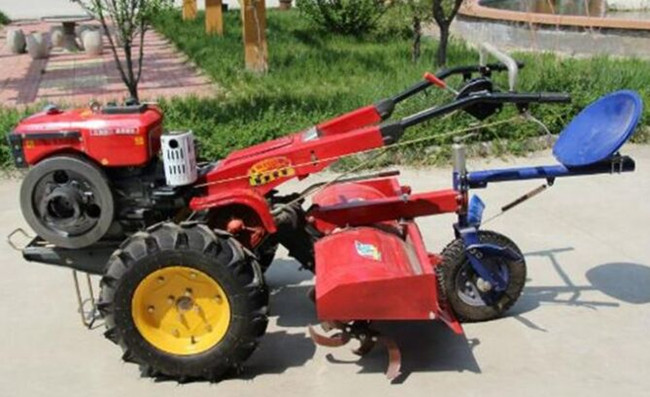

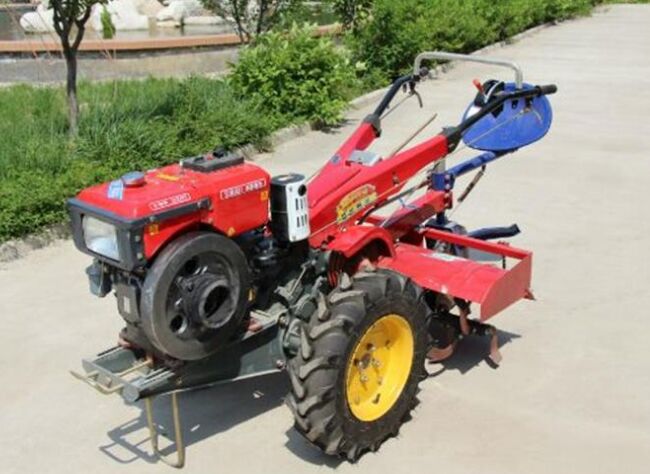

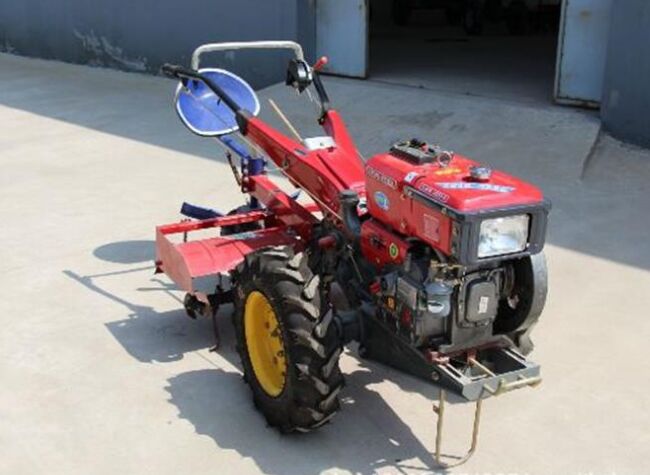

    UG-101B Soil Tillage Machine with Rotary Cultivator or Single Plowshare


    UG-101B Soil Tillage Machine Advantages:
    1. Casting and strengthening base plate, branded motor. Triune design makes the hand-type soil tillage machine have longer service life.
    2. Fuel saving.
    3. All of the tractor parts are made of thickened steel plate, such as frame, steel ring, wheel rim, etc., which are several milimeters thicker than other brands. The frame has spraying plastics layer, which can protect the machine against breaking, rusting and paint removing.
    4. Tyre is high temperature and wear resistant.
    5. It also has lighting facility installed and can work at night.
    6. Wide application if equipped with related agricultural tools, such as planting, tillage, threshing, water drawing and spraying.

    UG-101B Soil Tillage Machine with Rotary Cultivator or Singl


    UG-101B Soil Tillage Machine Main Technical Parameter:
    1. Model: UG-101B
    2. Tractor type: dual-purpose type(driving and pulling)
    3. Outline size: (L*W*H) 2170X845X1150 mm
    4. Wheel diameter: 680-750(mm)
    5. Rated power: 7.35-8.8kW
    6. Weight: 290(kg)
    7. Gears: Drive / Reverse
    8. Jointing method: belt
    9. Starting method: hand type
    10. Motor type: single cylinder, horizontal type, water-cooling, flour-stroke
    11. Motor model: HZ190/192/195

    UG-101B Soil Tillage Machine with Rotary Cultivator or Singl

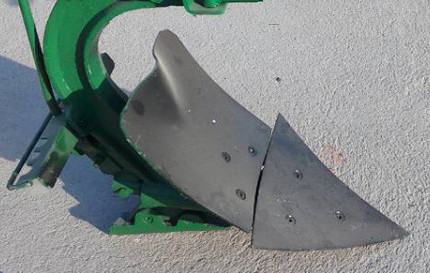

    For dry land, UG-101B-P single plowshare is recommended.
    UG-101B Soil Tillage Machine with Rotary Cultivator or Single Plowshare

    Its video:

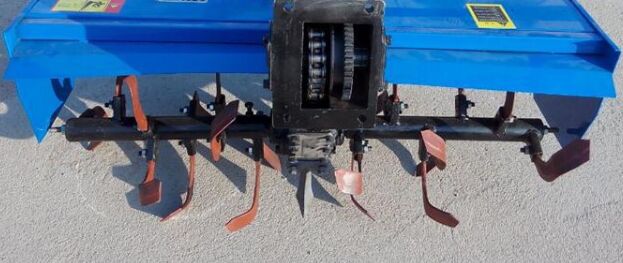

    For land that is not too dry, UG-101B-R rotary cultivator is recommended.

    UG-101B Soil Tillage Machine with Rotary Cultivator or Single Plowshare

    Its video:

    In brief, this machine can be applied to:

    Soil Tillage Machine



    Features:

    UG-101B Soil Tillage Machine Advantages:
    1. Casting and strengthening base plate, branded motor. Triune design makes the hand-type soil tillage machine have longer service life.
    2. Fuel saving.
    3. All of the tractor parts are made of thickened steel plate, such as frame, steel ring, wheel rim, etc., which are several milimeters thicker than other brands. The frame has spraying plastics layer, which can protect the machine against breaking, rusting and paint removing.
    4. Tyre is high temperature and wear resistant.
    5. It also has lighting facility installed and can work at night.
    6. Wide application if equipped with related agricultural tools, such as planting, tillage, threshing, water drawing and spraying.

    Technical Parameters:

    UG-101B Soil Tillage Machine Main Technical Parameter:
    1. Model: UG-101B
    2. Tractor type: dual-purpose type(driving and pulling)
    3. Outline size: (L*W*H) 2170X845X1150 mm
    4. Wheel diameter: 680-750(mm)
    5. Rated power: 7.35-8.8kW
    6. Weight: 290(kg)
    7. Gears: Drive / Reverse
    8. Jointing method: belt
    9. Starting method: hand type
    10. Motor type: single cylinder, horizontal type, water-cooling, flour-stroke
    11. Motor model: HZ190/192/195

    Any change of technical parameters, there is no further notice.
