【Features】:The automatic hydraulic oil press can be used for hot and cold pressing in varieties of high-grade oil crops, such as cocoa beans, walnut, almond, pine nuts, sesame, olives, mountain tea seed,etc.

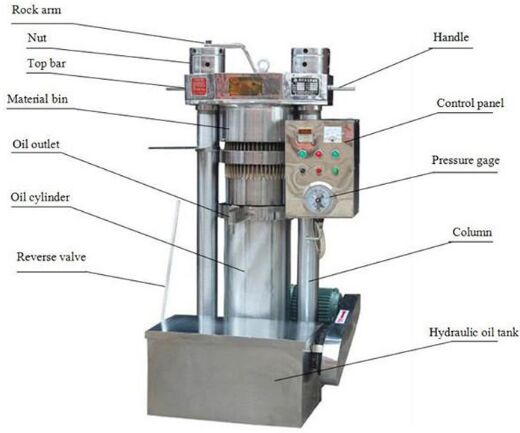

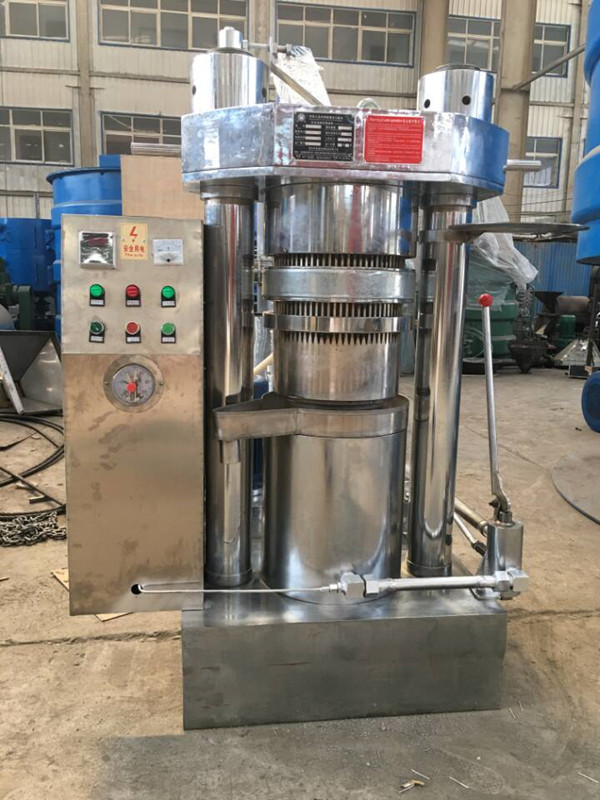

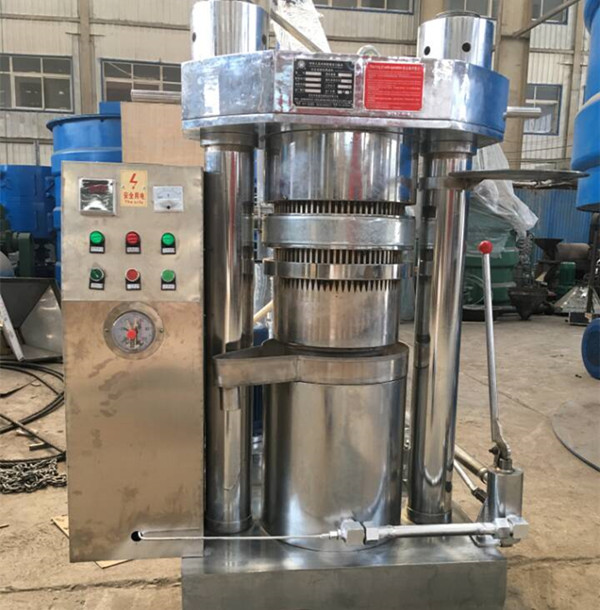

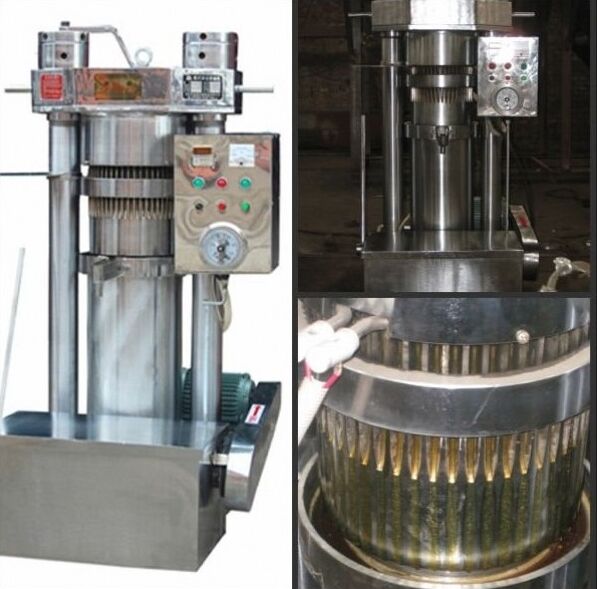

Hydraulic Cold Oil Press for Olive / Sesame UGO-300:
The automatic hydraulic oil press has features of high pressure and large capacity.
It can be used for hot and cold pressing in varieties of high-grade oil crops, such as cocoa beans, walnut, almond, pine nuts, sesame, olives, mountain tea seed,etc. with better pressing effects. It can also be used in clay,activated carbon and other chemical raw materials for dehydration, deoiling and off liquid.
Advantages:
We choose hydaulic cold oil press to make oil from olive, sesame, etc. to make sure that the temperature of the oil has no any change, because the machine adopts piston pressure to press oil. And then we can install the oil and water separator, which adopts the gravity difference to separate oil from water to get clean and fine oil.
Technical parameter:
|
主要技术参数 Main Technical Parameters |
|
|
产品名称 Name |
全自动液压榨油机Automatic Hydraulic Oil Press Machine |
|
产品型号 Model |
UGO-300 |
|
外形尺寸（mm）长*宽*高 Overall Dimensions（mm） Length*Width*Height |
1000*1150*1750 |
|
单位工作压力 Working Pressure |
55MPa |
|
工作推力 Pushing Force of Working |
200t |
|
榨筒内径 Inner Diameter of Pressing Barrel |
300mm |
|
活塞工作行程 Working Stroke of Piston |
450mm |
|
榨筒容量 Capacity of Pressing Barrel |
20kg |
|
平均生产率 Average Capacity |
120kg/h |
|
主机动力 Main Motor |
3kw |
|
电热圈功率Motor of Electric Heating Circle |
2kw |
|
重量 Weight |
Machine Weight: 1500kg Total Weight with Package:1690kg |
VIDEO:
Advantages:
We choose hydaulic cold oil press to make oil from olive, sesame, etc. to make sure that the temperature of the oil has no any change, because the machine adopts piston pressure to press oil. And then we can install the oil and water separator, which adopts the gravity difference to separate oil from water to get clean and fine oil.
Technical parameter:
|
主要技术参数 Main Technical Parameters |
|
|
产品名称 Name |
全自动液压榨油机Automatic Hydraulic Oil Press Machine |
|
产品型号 Model |
UGO-300 |
|
外形尺寸（mm）长*宽*高 Overall Dimensions（mm） Length*Width*Height |
1000*1150*1750 |
|
单位工作压力 Working Pressure |
55MPa |
|
工作推力 Pushing Force of Working |
200t |
|
榨筒内径 Inner Diameter of Pressing Barrel |
300mm |
|
活塞工作行程 Working Stroke of Piston |
450mm |
|
榨筒容量 Capacity of Pressing Barrel |
20kg |
|
平均生产率 Average Capacity |
120kg/h |
|
主机动力 Main Motor |
3kw |
|
电热圈功率Motor of Electric Heating Circle |
2kw |
|
重量 Weight |
Machine Weight: 1500kg Total Weight with Package:1690kg |
Any change of technical parameters, there is no further notice.
