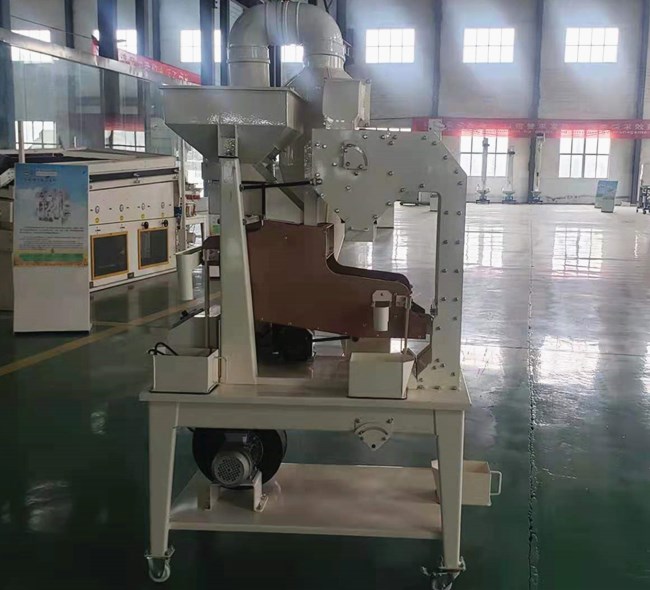

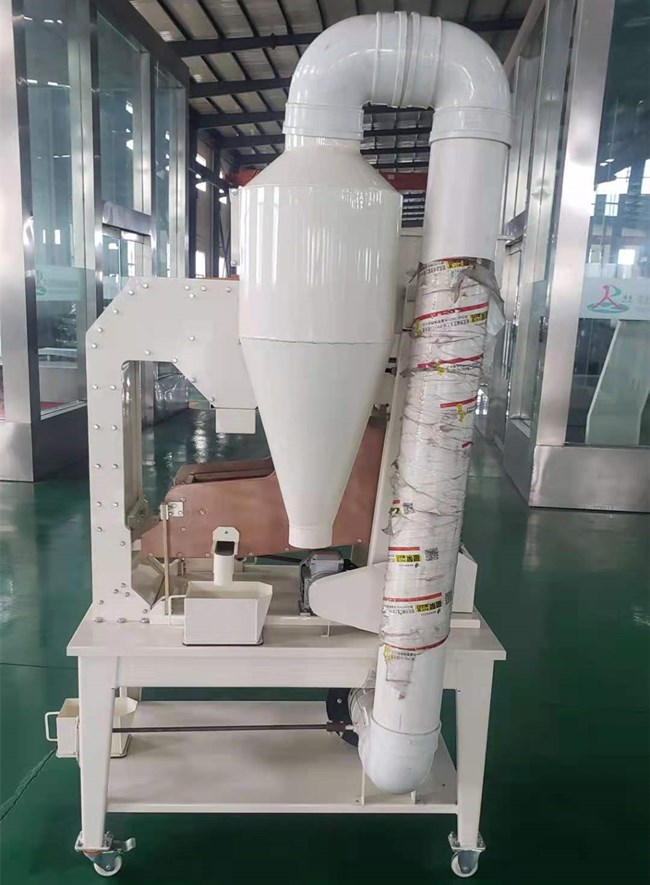

Laboratory Air Sieve Seeds Cleaner Screening for Quinoa, Barley, Pearl Millet and Sorghum Introduction:
1. Environmental protection
The machine is equipped with an independent dust removal system, which effectively protects the cleanliness of the working environment.
2. Composite plate screen box
1) Waterproof and insect-proof
2) Since the composite board can withstand the vibration of the screen box, it has a long service life
3. Balance eccentric system
1) Relative counterweight, smooth operation
2) Minimal impact on equipment and metal components
3) The precise coordination of the reciprocating motion and rotating speed of the screen box ensures that the cleaning effect of the screen is maximized.
4. Ball rack
1) Achieve high-efficiency cleaning through rubber balls
2) Independent of the screen box, there is no need to move the ball rack when changing the screen
5. Speed regulation
The frequency converter speed control device is adopted to facilitate the adjustment of the transmission frequency during work.
1. Environmental protection
2. Durable and reasonable design of the composite plate screen box
3. Balance eccentric system
4. Achieve high-efficiency cleaning through rubber balls
5. The frequency converter speed control device is adopted to facilitate the adjustment of the transmission frequency during work.
Production capacity: 150 kg/h;
Fan power: 0.55 kw;
Screen power: 0.37 kw;
Working voltage: 220V/50Hz;
Screening machine frequency: 0-400 times/min:
Amplitude of sieve machine: 15 mm;
Screen size: top layer 220X270 mm, second layer 490X270 mm, bottom layer 540X270 mm;
Dimensions: 1500×1170×2220 mm
Any change of technical parameters, there is no further notice.
