500KG/Hour Olive Oil Production Line Introduction:

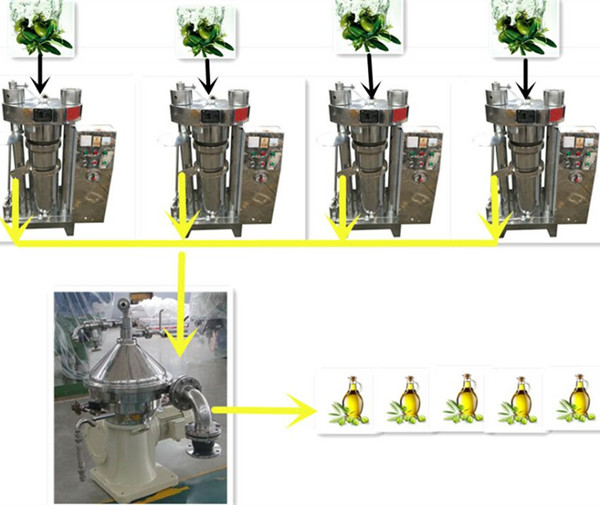

After cleaning, the olives are wrapped in a filter bag and loaded into the oil press. The pressed juice enters the oil-water separator and then the olive oil is filled.

Advantages:
This design (filtered with a filter bag) ensures that the oil that comes out is essentially free of dregs.
We choose hydaulic cold oil press to make oil from olive to make sure that the temperature of the oil has no any change, because the machine adopts piston pressure to press oil. And then we install the oil and water separator, which adopts the gravity difference to separate oil from water to get clean and fine oil.



Machines List

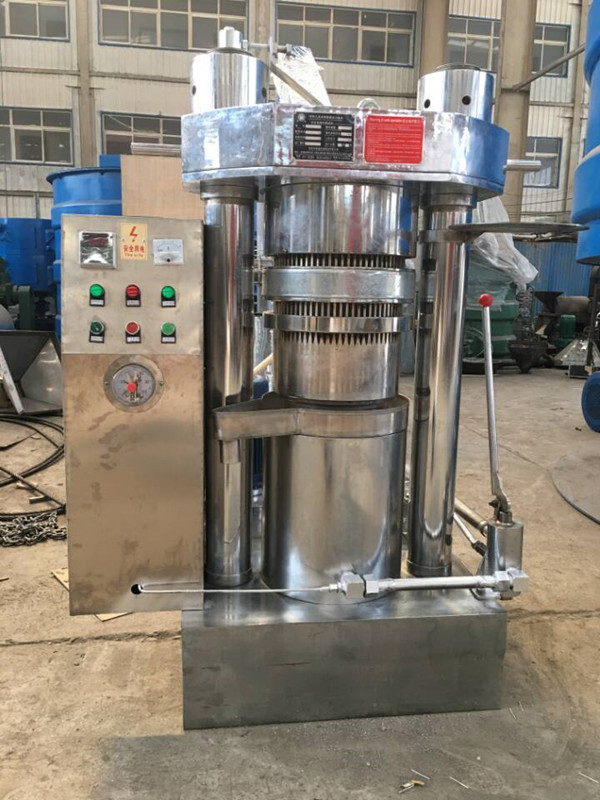

1.Automatic Hydraulic Oil Press:
Quantity: 4 pcs.
Oil pan material: 304# stainless steel.
380V electric motor.




The automatic hydraulic oil press has features of high pressure and large capacity.It can be used for hot and cold pressing in varieties of high-grade oil crops,such as cocoa beans,walnut,almond,pine nuts,sesame,olives,and mountain tea seed,etc,with better pressing effects.It can also be used in clay,activated carbon and other chemical raw materials for dehydration,deoiling and off liquid.

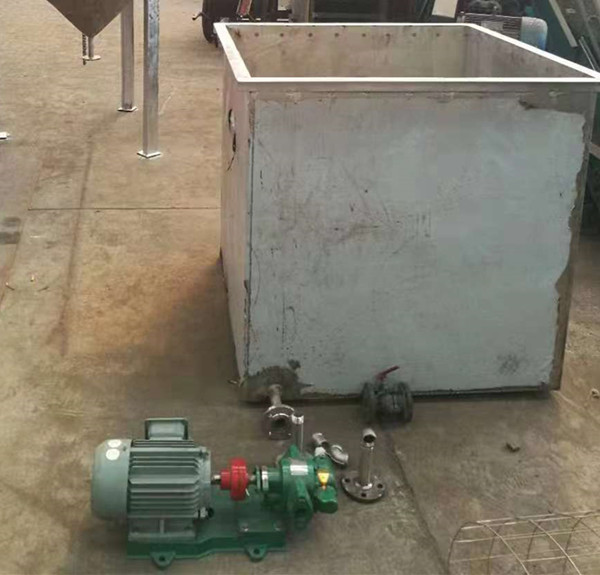

2. One cubic stock tank.

3. One gear pump.

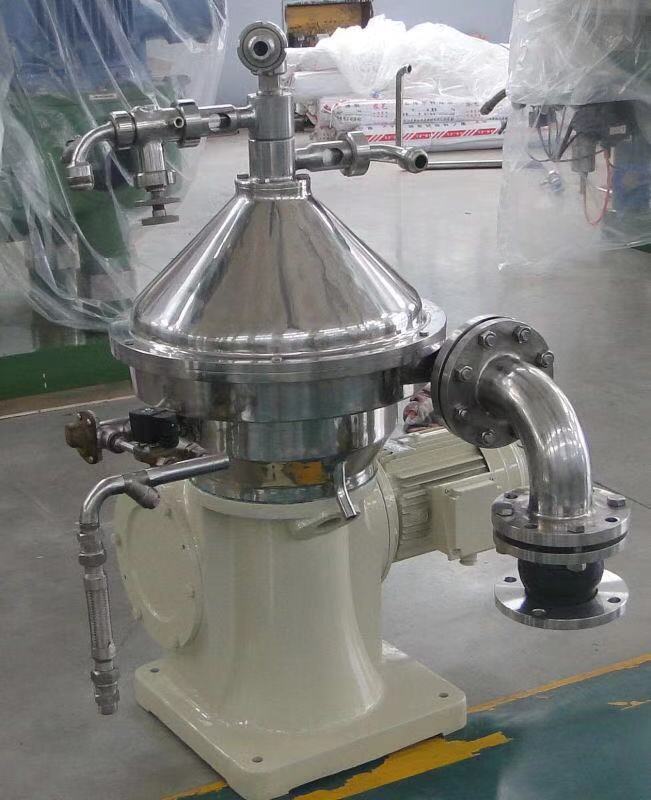

4. One oil and water separator:


Model: UGS204
Electric motor: 4KW.
Manual all-dregs removal, centripetal pump at the discharging outlet.
All the parts that touch the oil adopt 304 stainless steel.

5.pipelines:
We can't budget how many pipelines you need for your site. To ensure good oil quality, stainless steel pipes are required. I suggest you buy it locally. If we send the pipeline, we need to cut it to a length of 1.2m, then it is not easy to install.

End products:

Hydraulic cold oil press processing video:
