    Portable Chia Cleaner 3T/Hour

    【Features】:Portable Chia Cleaner 3T/Hour: integrated with clearing, wind selection, specific gravity selection and grading functions together, truly realizing one machine and multi-purpose.

    E-mail:ugoodmach@gmail.com

    Brief Introduction:

    Portable Chia Cleaner 3T/Hour:

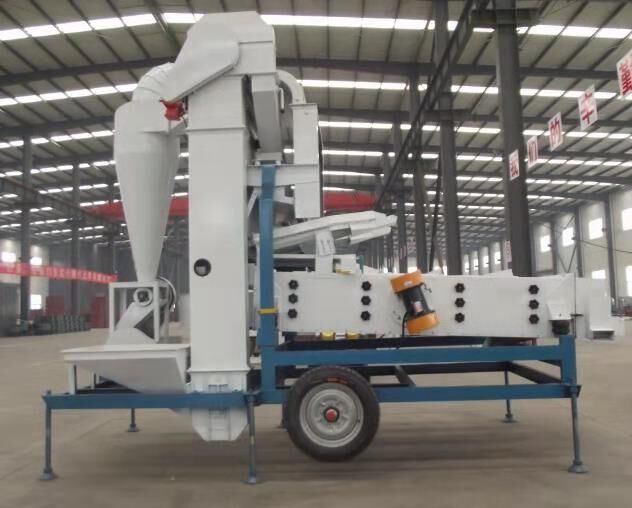

    Portable Chia Cleaner 3T/Hour

    Function and features:
    1) Integrated with clearing, wind selection, specific gravity selection and grading functions together, truly realize one machine and multi-purpose.
    2) Newly adding the preliminary cleaning sieve, the seeds can be better cleaned in the air separation screen after the preliminary cleaning process.
    3) A box of two-body screen box, double the screening area, which can better separate seeds and impurities.
    4) Equipped with a spiral dust collector, environmentally friendly design, improve the working environment.

    Portable Chia Cleaner 3T/Hour


    Performance:

    This series of products is suitable for wind selection, screening, specific gravity selection and grading for various grain seeds. It can not only remove the light impurities, large impurities, small impurities and grains that are not fully grown(or withered grains), but can also remove the grains with mildew, insect-bitten grains, the grains with black powder disease, etc.
    By replacing different sieves for the grader machine, the machine can process different seeds (according to users' requirements).


    End products:

    Clean Chia:
    Portable Chia Cleaner 3T/Hour
    Portable Chia Cleaner 3T/Hour

    Impurities removed from the chia:
    Portable Chia Cleaner 3T/Hour


    Technical parameter:

    Model

    Capacity

    (t/h)

    Power

    (kw)

    Weight

    (metric tons)

    Sieve Size

    L×W (mm)

    Dimension

    L×W×H(mm)

    Remarks

    UGC-2

    3

    4.25

    1.2

    1000×1000

    3970×1800×2750

    Double air cleaning, stone removng and grading, All in one





    After-Sales Service:

    1.Two-Year Quality Guarantee:
    The machine has one-year quality guarantee from the purchasing date. During the guarantee period, if the main body is defective as the bad quality without any workers' wrong operation, we should replace the parts for free!
    2. We provide free maintenance guidance throughout the year!



    Features:

    Function and features:
    1) Integrated with clearing, wind selection, specific gravity selection and grading functions together, truly realizing one machine and multi-purpose.
    2) Newly adding the preliminary cleaning sieve, the seeds can be better cleaned in the air separation screen after the preliminary cleaning process.
    3) A box of two-body screen box, double the screening area, which can better separate seeds and impurities.
    4) Equipped with a spiral dust collector, environmentally friendly design, improve the working environment.

    Technical Parameters:

    Technical parameter:

    Model

    Capacity

    (t/h)

    Power

    (kw)

    Weight

    (metric tons)

    Sieve Size

    L×W (mm)

    Dimension

    L×W×H(mm)

    Remarks

    UGC-2

    3

    4.25

    1.2

    1000×1000

    3970×1800×2750

    Double air cleaning, stone removng and grading, All in one



    Any change of technical parameters, there is no further notice.
