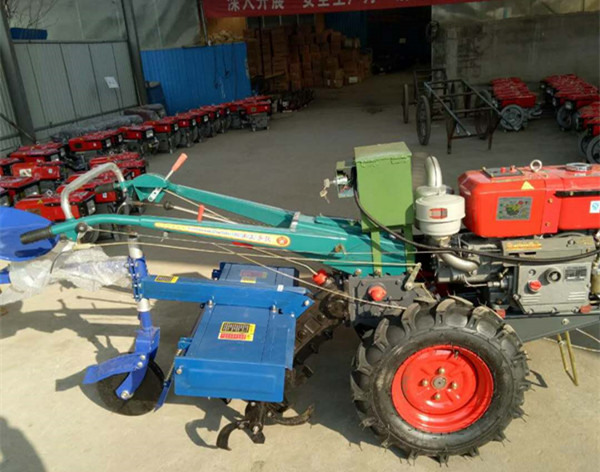

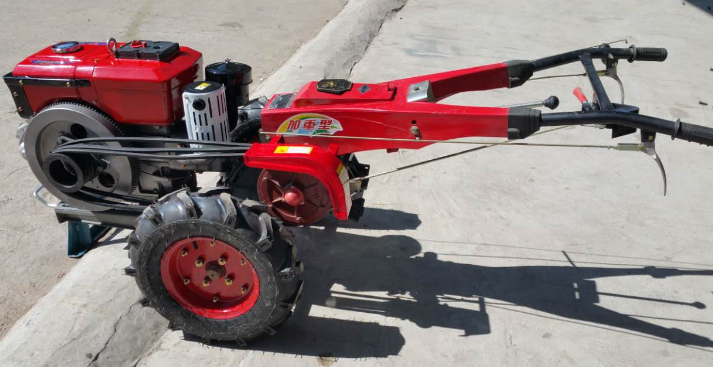

Our walking tractor with various agricultural farming implements is widely used in paddy field, marshlands, swamp, dryland, plains, mountainous areas, hills and other areas, for ploughing, rotary tillage, hoeing, harvesting, leveling, sowing, transportation, pumping, threshing, spraying, etc.





Walking Tractor Quality:
The handle is thickened and widened.
The shaft is heavy-duty stype and suitable for horse steel rings and steel plate rings.
The surface paint is all sprayed, not afraid of rain and sun.

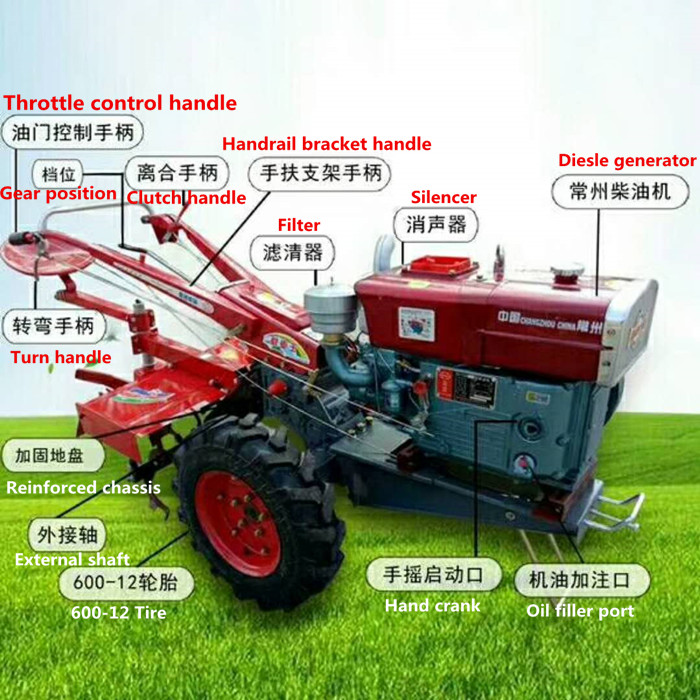

Walking Tractor Features:
1. This product model is traction and drive type. The gearbox is 12° backwards than the traditional model, and the distance between the diesel engine and the gearbox is shortened. It does not need to use the weight iron. It has beautiful appearance, compact and reasonable structure, durable, easy to operate, flexible, adaptable and so on.
2. The product is widely used in paddy field, dryland, plains, mountainous areas, hills and other areas.
3. With the corresponding agricultural machinery, it can be used for ploughing, rotary tillage, hoeing, harvesting, leveling, soil, sowing, transportation, pumping, threshing, spraying and other operations.
4. Equipped with lighting facilities, it can be used for night work.

Technical Parameter：
1. Model: UG-101T
2. Tractor type: dual-purpose type(driving and pulling)
3. Outline size: (L*W*H) 2170X845X1150 mm
4. Wheel diameter: 680-750（mm）
5. Rated power: 7.35-8.8kW
6. Weight: 290(kg)
7. Gears: Drive / Reverse
8. Jointing method: belt
9. Starting method: hand type
10. Motor type: single cylinder, horizontal type, water-cooling, flour-stroke
11. Motor model: HZ190/192/195

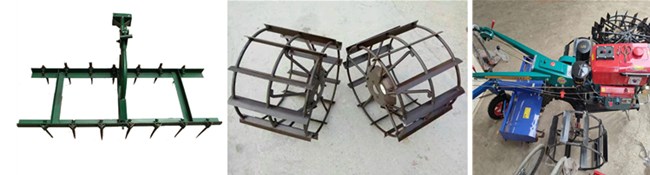

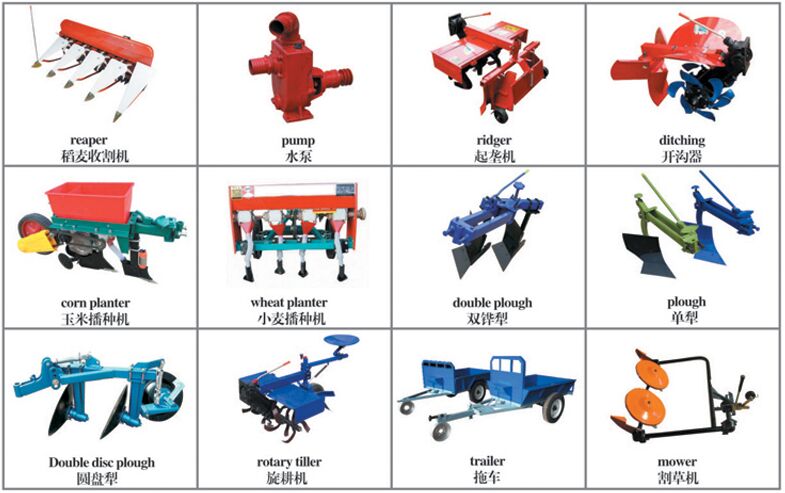

We can also produce various agricultural implements for walking tractors or four-wheels tractors as below:

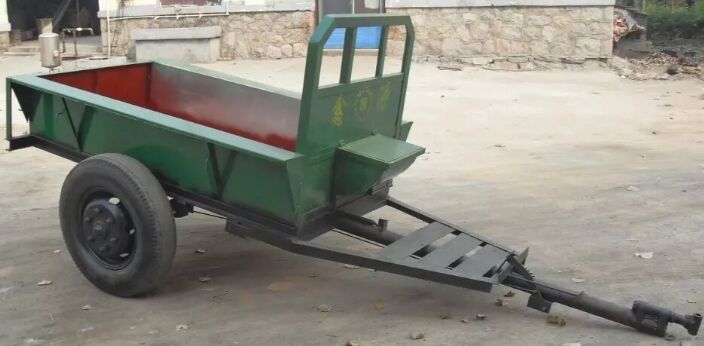

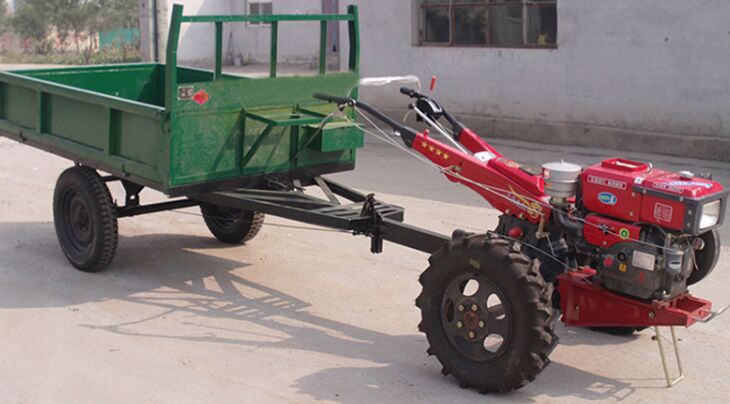

Equipped with the trailer:
Trailer length*width: 1.7m*0.9m, material: iron.

Each horse power of tractor is available in our factory, such as 8hp, 10hp, 12hp, 14hp, 15hp, 18hp, etc.
